MODEL NO. :
ROUND INDICATOR
IND 02
ANALOG/DIGITAL
WEIGHBRIDGE
A weighbridge indicator is an electronic device that receives analog or digital signals from load cells beneath the platform and converts them into a readable digital value representing the actual weight on the platform. The EGL IND-02 is the round type weighbridge indicator. Built on a high speed microprocessor, it accepts 220V AC mains input, drives a 6-digit 1″ high-bright red segment display, supports up to 8 loadcells (analogue or digital), and features with opto-isolated RS-232 communication.
Specifications
| MODEL | EGL IND-02 |
| TYPE | INDICATOR |
| DISPLAY | 1″ HIGH-BRIGHT RED · 6-DIGIT |
| PROCESSOR | HIGH SPEED |

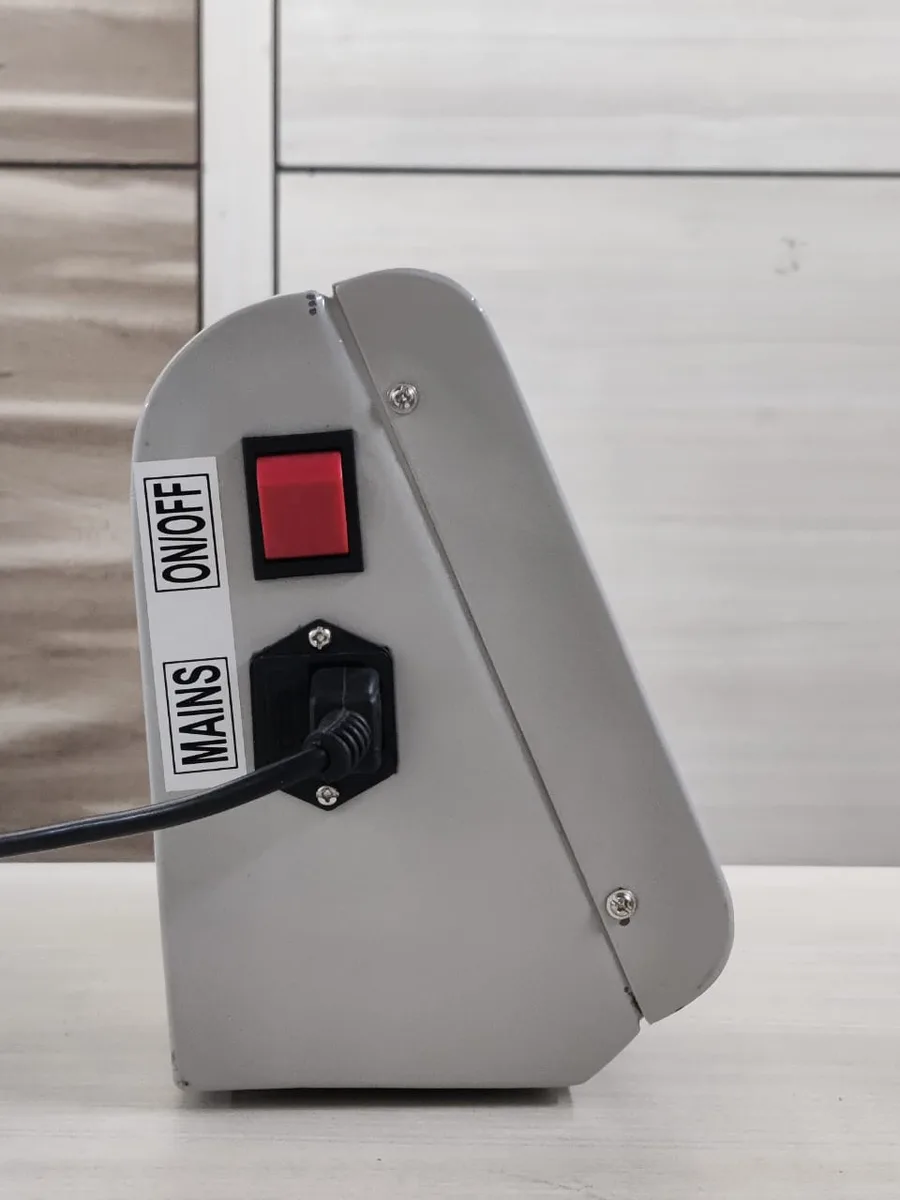

| POWER | 220V AC |
| REMOTE DISPLAY | 1/2/4 INCH (3 WIRE) |
| LOADCELL SUPPORT | KELI, ZEMIC, KEVIN, HAK ETC. |
| DATA TRANSFER | RS232 |

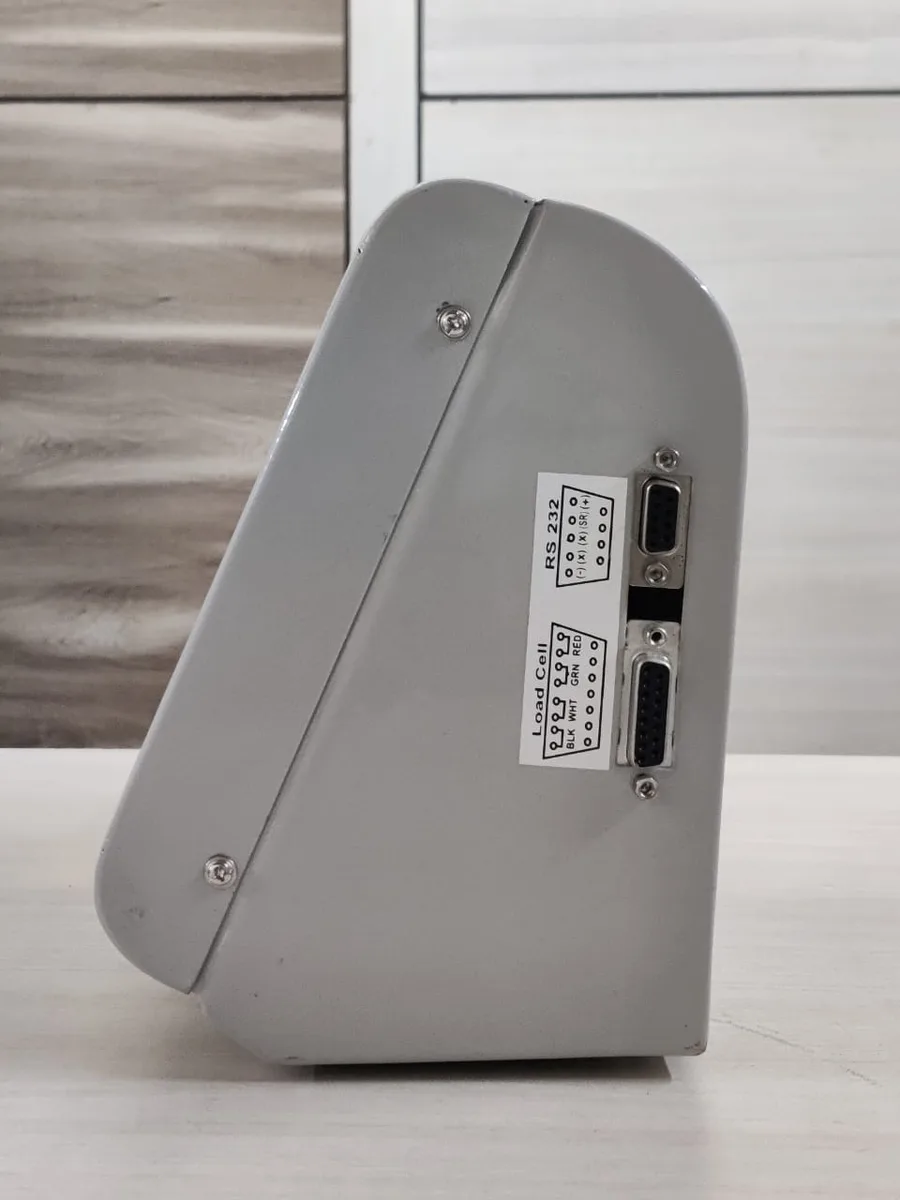

| RS-232 INTERFACE | YES (optocoupler-isolated) |
| ENCLOSURE | POWDER COATED MS BODY |
Specifications
| TANK WEIGHING | OPTIONAL |
| AUTO ZERO | YES |
| AIR LOCKING | YES |
| CAL LOCK | YES |
| WARRANTY | 1 year · Made in India |
| SOFTWARE | CUSTOMIZABLE |
| BATTERY SUPPORT | 6 VOLTS 5 AMP |
| HOLD FUNCTION | YES |
| DIMENSIONS | NA |
| WEIGHT | NA |
Features
Built into every Eagle Weigh weighing indicator.
- ✓Industrial-Grade Performance
- ✓Unique Cabinet Design
- ✓Easy Integration with Weighbridge System
- ✓Computer Software Compatible
- ✓User-Friendly Operation
- ✓Runs on Multiple Baud Rate
- ✓Suitable For Automation And Smart Weighbridge
Used in
Where this weighing indicator ships.
Truck WeighbridgesIndustrial Platform ScalesHopper & Tank Weighing Logistics & Warehousing Steel Industries
Compare with
More from the Eagle Weigh range.
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the ROUND INDICATOR for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelROUND INDICATOR
CategoryWeighbridge Indicator
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
