MODEL NO. :
EGL IND-03
HANDLE TYPE
ANALOG/DIGITAL
WEIGHBRIDGE

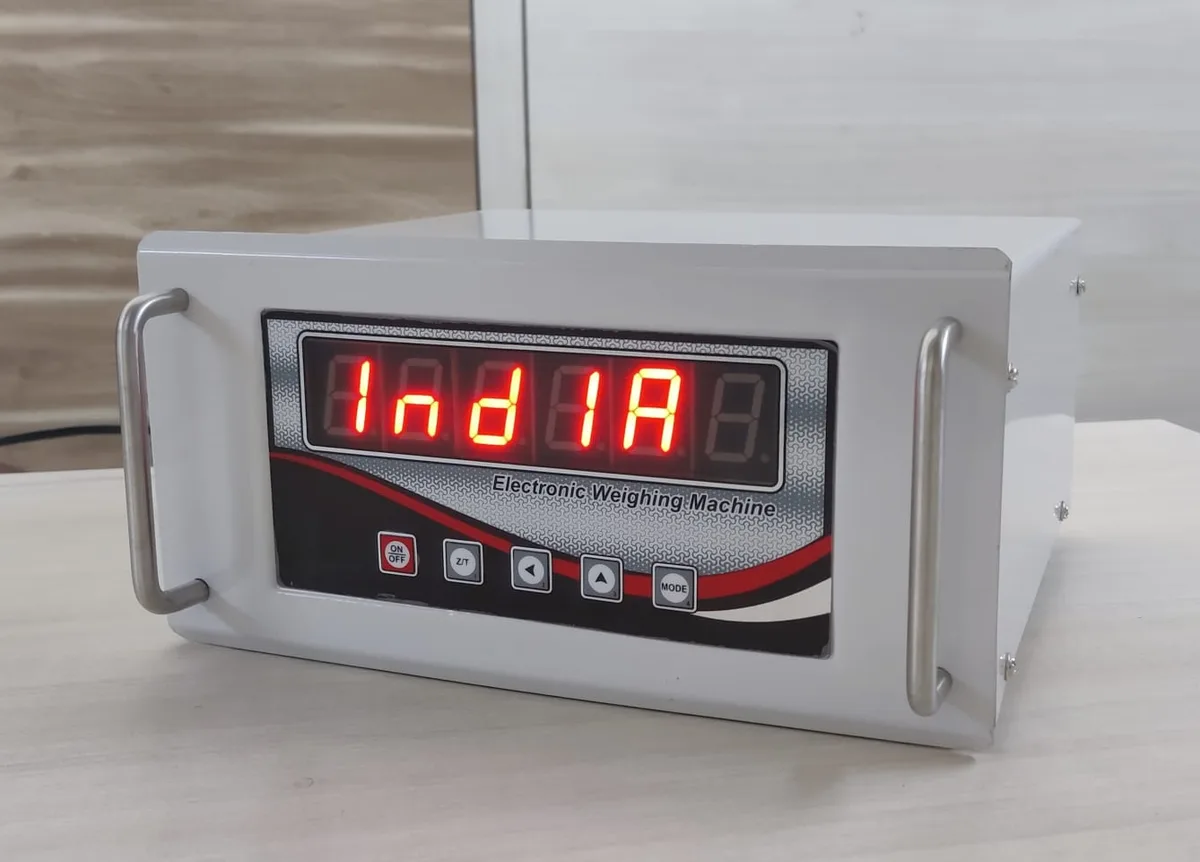

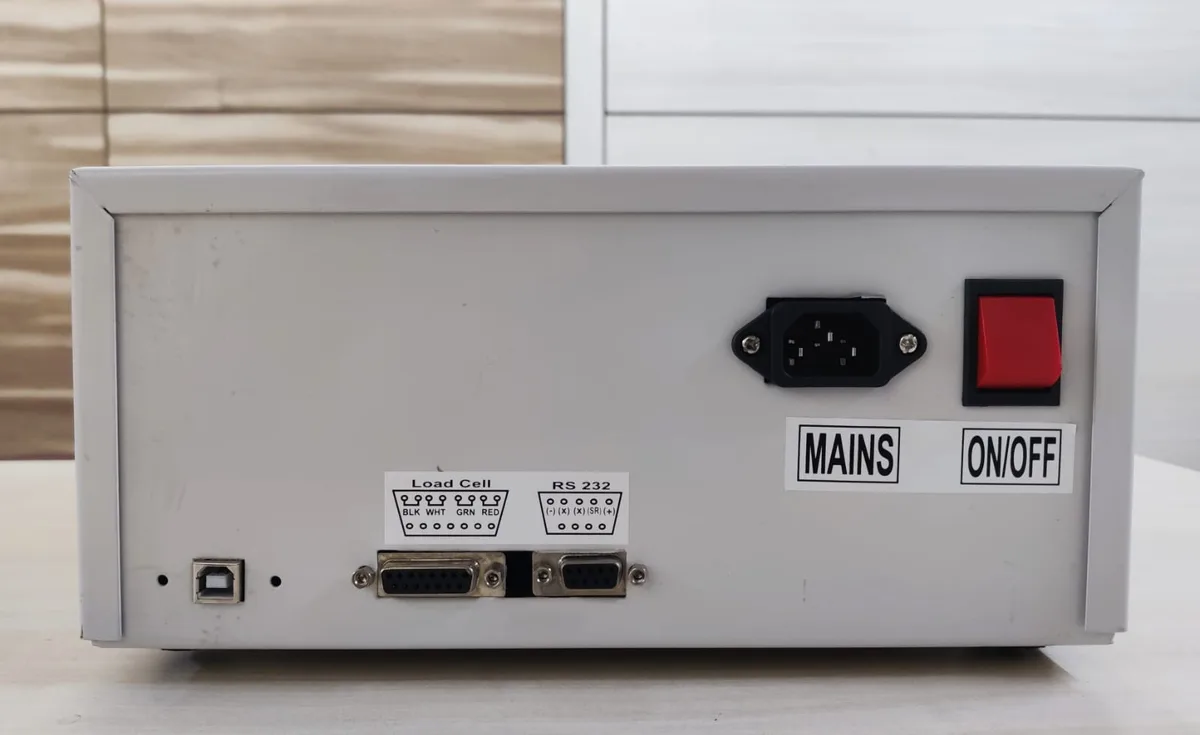

A weighbridge indicator is an electronic device that receives analog or digital signals from load cells beneath the platform and converts them into a readable digital value representing the actual weight on the platform. The EGL IND-03 is the flat-mount weighbridge indicator. Built on a high speed microprocessor, it accepts 220V AC mains input, drives a 6-digit 1″ high-bright red segment display, supports up to 8 loadcells (analogue or digital), and features with opto-isolated RS-232 communication.
Specifications
| MODEL | EGL PRT-IND-01 |
| DISPLAY | 0.56″ or 0.8″ red · 6-digit |
| BUILT-IN PRINTER | 2″ thermal · 50,000 m roll life |
| REAL-TIME CLOCK | YES (battery-backed) |
| WEIGHT MEMORY | Latest 1,000 weighments |
| BATCH WEIGHING | YES |
| PROCESSOR | Nuvoton |
| POWER | 140 – 280 V AC · onboard SMPS |
| LOAD-CELL SUPPORT | Up to 8 LC · analogue + digital |
| READING RATE | 2,400 / sec |
| RS-232 INTERFACE | YES (isolated) |
| DATA TRANSFER | Bluetooth + Android · USB |
| ENCLOSURE | Metallic · powder-coated |
Specifications
| SLIP FORMAT | Configurable (serial · date · gross / tare / net) |
| REPRINT | YES (audit-trailed) |
| CHECK-WEIGHER MODE | YES |
| PEAK HOLD | YES |
| MANUAL TARE | YES |
| AUTO ZERO | YES |
| AIR LOCKING | YES |
| CAL LOCK | YES |
| SLEEP MODE | YES |
| PIECE COUNTING | YES |
| WARRANTY | 1 year · Made in India |
Features
Built into every Eagle Weigh weighing indicator.
- ✓Built-in 2″ thermal printer with 50,000 m roll life
- ✓Real-time clock with battery backup
- ✓1,000-weight rolling memory · batch-weighing mode
- ✓Same Nuvoton core as IND-01/02 — 2,400 readings/sec, up to 8 LC
- ✓Configurable slip format with reprint + audit trail
- ✓Bluetooth + Android transfer + opto-isolated RS-232
Used in
Where this weighing indicator ships.
Retail counter scalesMandi weighbridgesSmaller industrial scalesField-service weighing
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the EGL IND-03 for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelEGL IND-03
CategoryWeighbridge Indicator
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
