MODEL NO. :

EGL Tank-Weighing Card

Continuous-Reading Firmware

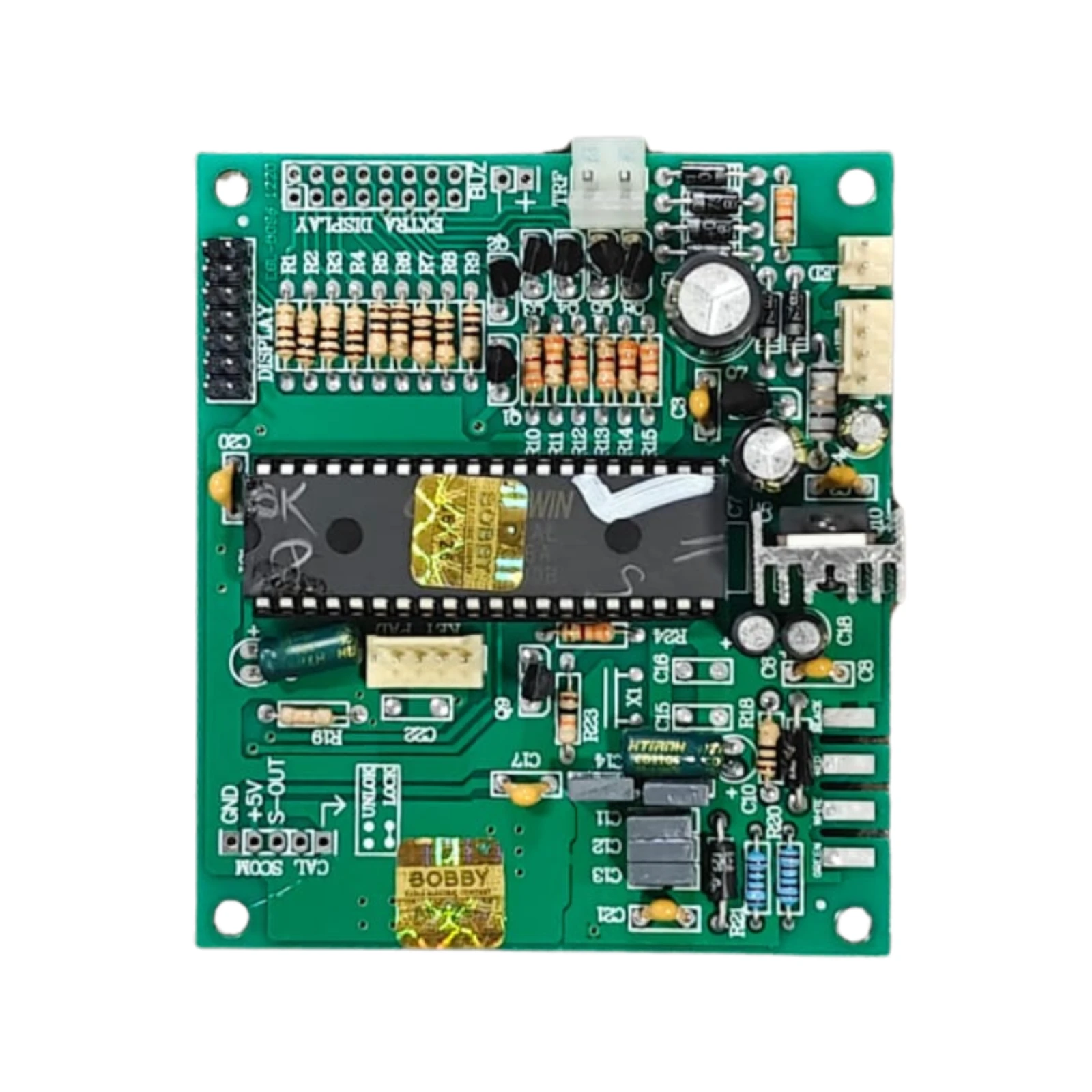

Eagle Weigh EGL Tank-Weighing Card weighing-scale PCB
WEIGHING SCALE

The Tank Weighing card uses firmware optimised for continuous-reading workflows — tanks and hoppers that are weighed every time something is added or removed. Pairs with shear-beam load cells (SESB) for IP67/68-sealed multi-cell summing on tank or hopper bottoms.

Specifications
MODELEGL Tank Weighing Card
FIRMWARE7777 Bobby (continuous-reading)
MODEContinuous reading + set-point support
PCB GRADE1.6 mm thickness · FR4
BATTERY SUPPORT6 VOLTS
BATTERY BACKUPUp to 50 hours
PAIRED CELLSSESB shear-beam (multi-cell)
OPTIONAL SET-POINTPairable with 3/4-step set-point output
FILTERSlosh + drift filter
PAIRED INDICATOREGL IND-01 / IND-02
Specifications
CAPACITY3 cap. with 3 step accuracy
DUMMY ZEROYES
AIR LOCKINGYES
AUTO ZEROYES
CAL LOCKYES
BUZZER PORTYES
SLEEP MODEYES
BATTERY BACKUPUp to 50 hours
BATTERY SUPPORT6 VOLTS
PCB GRADE1.6 mm thickness · FR4
FIRMWARE7777 Bobby (per-application)
WARRANTY1 year · Made in India
CONTINUOUS READINGYES
DRIFT COMPENSATIONYES (firmware-level)
Features

Built into every Eagle Weigh card.

  • ✓Continuous-reading firmware — tuned for tanks & hoppers
  • ✓Multi-cell summing via SESB shear-beam load cells
  • ✓Slosh and drift filtering at firmware level
  • ✓Pairable with the set-point card for auto-stop batch fills
  • ✓Pairs with the S-Type suspension cell for hanging tanks
  • ✓IP67/68-sealed cells survive process environments
Used in

Where this card ships.

Process tanksHopper weighersSilo bottom-weighBatch dispensers
