MODEL NO. :
EGL CFG-01
(GREEN DISPLAY · 0.8″)
Combi Intelligent Terminal
WEIGHBRIDGE

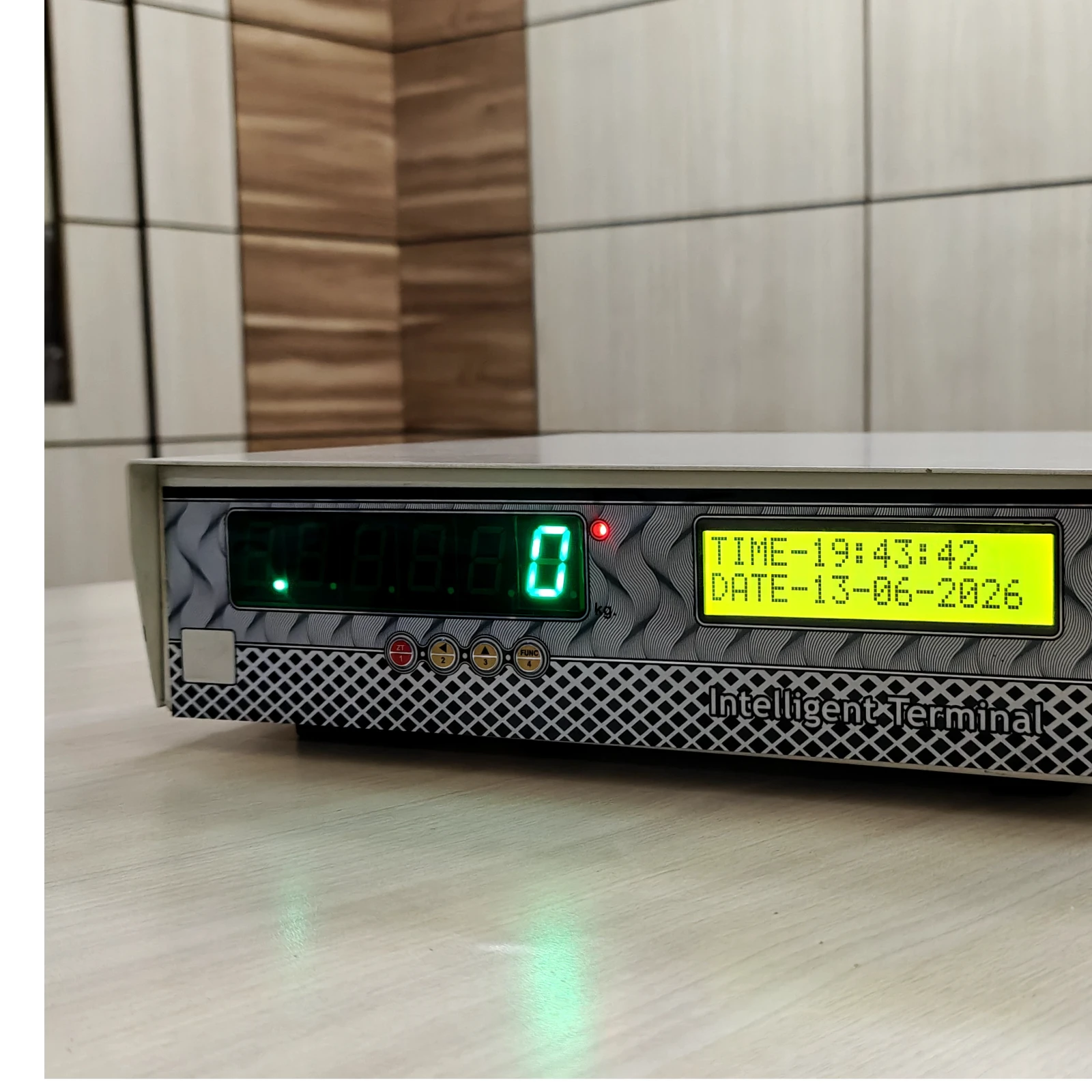

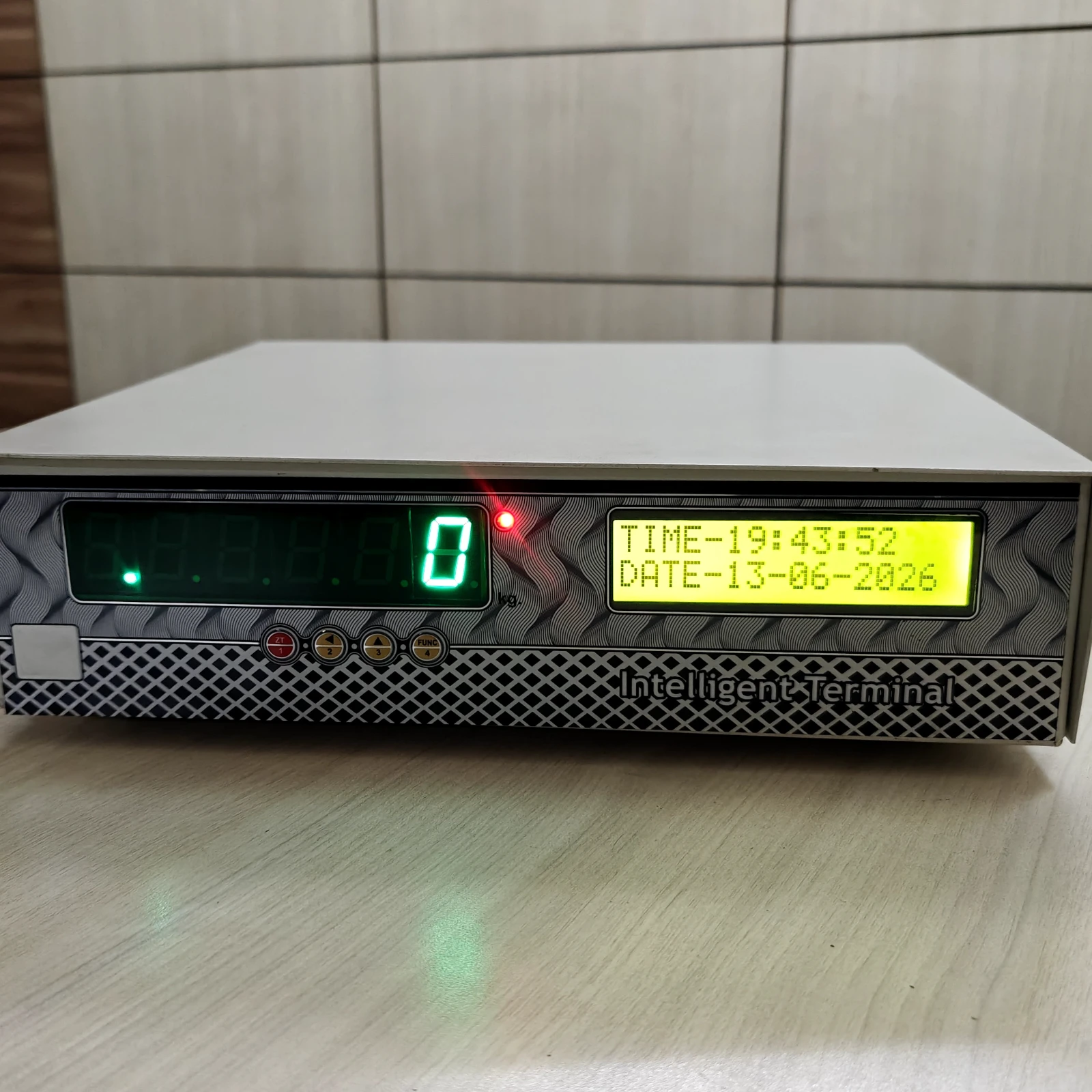

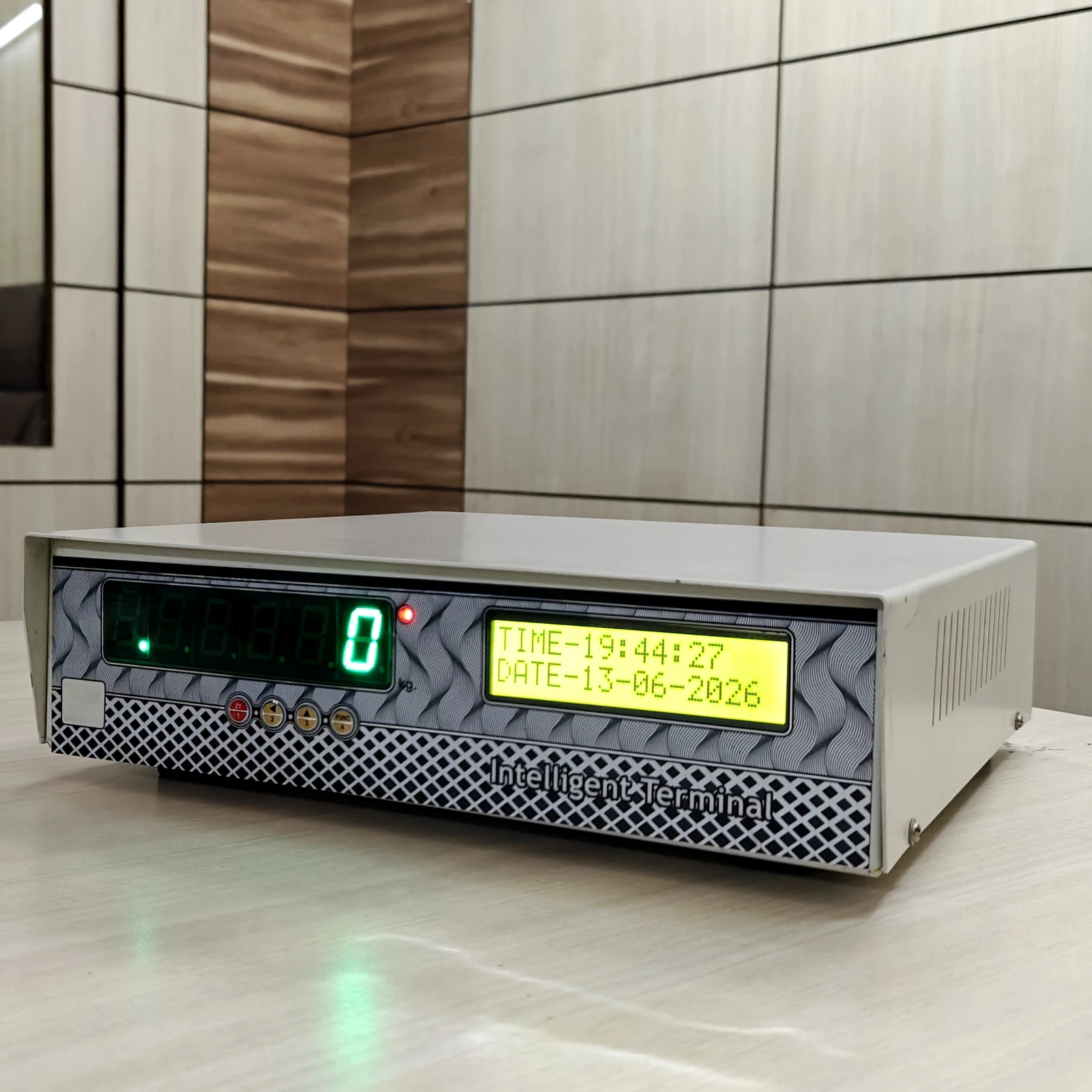

The CFG-01 is the green-display intelligent weighbridge terminal in the EGL Combi series. It runs the standard 220 V AC supply with onboard SMPS, a 16×2 LCD display, PS2 keyboard, real-time clock, optocoupler-isolated RS232 and supports both analogue and digital load cells. Memory expandable up to 16,000 records, with SMS facility and USB/pendrive export.
Specifications
| MODEL | EGL CFG-01 |
| DISPLAY | 0.8″ Green segment + 16×2 LCD |
| PROCESSOR | Nuvoton |
| POWER | 220 V AC · onboard SMPS |
| KEYBOARD | PS2 keyboard (or USB) |
| REAL-TIME CLOCK | YES (battery-backed) |

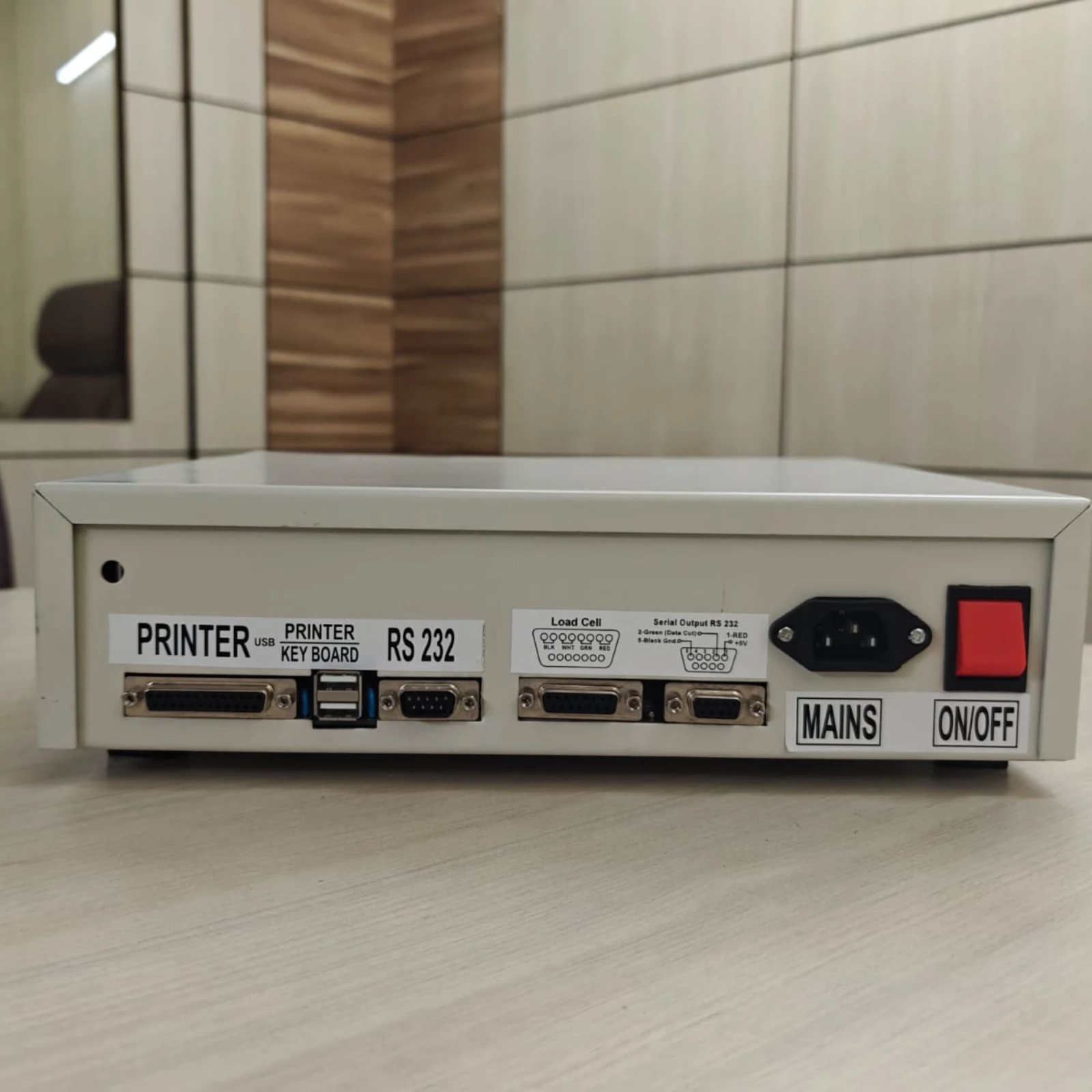

| PRINTER INTERFACE | Dot-matrix (or USB printer) |
| RS-232 INTERFACE | YES (optocoupler-isolated) |
| LOAD-CELL SUPPORT | Analogue + digital, up to 10 LC |
| USB INTERFACE | USB-keyboard / USB-printer / pen-drive |

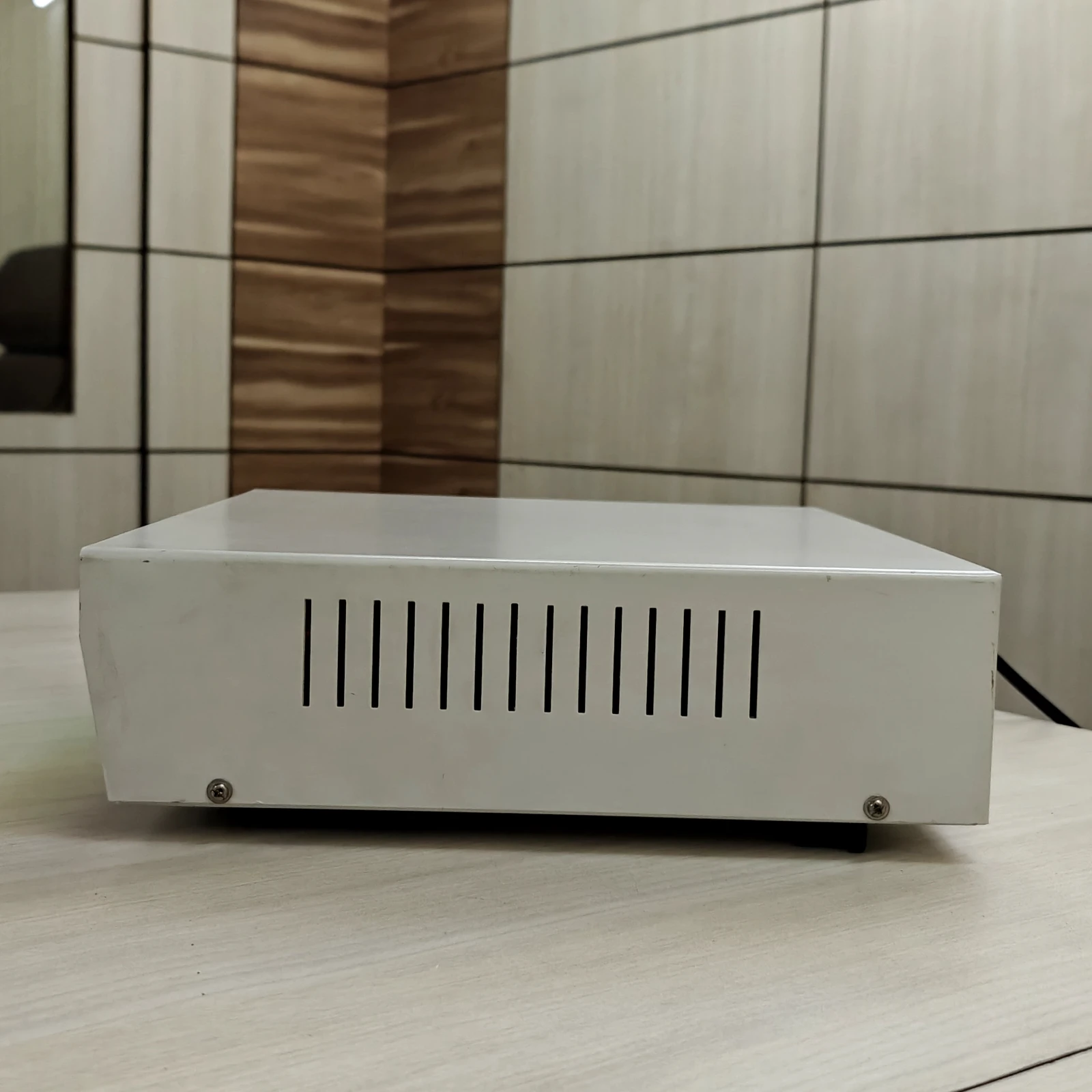

| ENCLOSURE | Powder-coated metal cabinet |
Specifications
| MEMORY | Up to 16,000 records |
| SMS FACILITY | Up to 5 phones per slip |
| OPERATOR MENUS | YES (multilingual) |
| WEIGHMENT SLIP | Serial · truck · gross / tare / net · material · party |
| REPRINT | YES (with audit trail) |
| REPORTS | Date- / truck- / party- / material-wise |
| EXPORT | PDF · Excel · USB pen-drive · email |
| MANUAL TARE | YES |
| AUTO ZERO | YES |
| INTEGRATION | e-Rawanna · FCI Hafed · Anna Darpan |
| WARRANTY | 1 year · Made in India |
Features
Built into every Eagle Weigh card.
- ✓16,000 weighment-record memory — years of operation without overflow
- ✓SMS facility to up to 5 phone numbers per slip
- ✓Real-time clock with battery backup
- ✓Operator-prompting menus with reprint and audit trail
- ✓Reports filterable by date / truck / material / party
- ✓USB-printer, USB-keyboard, and USB pen-drive export
- ✓Integration-ready for e-Rawanna, FCI Hafed, Anna Darpan
- ✓Powder-coated metal cabinet · designed for the weighbridge cabin
Used in
Where this card ships.
Public weighbridgesPrivate weighbridgesMining despatchTollwaysGrain procurement
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the EGL CFG-01 for your build?
Tell us the application, the capacity and the volume — we come back with a price-and-lead-time within one business day.
ModelEGL CFG-01
CategoryWeighbridge Terminal
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
