MODEL NO. :

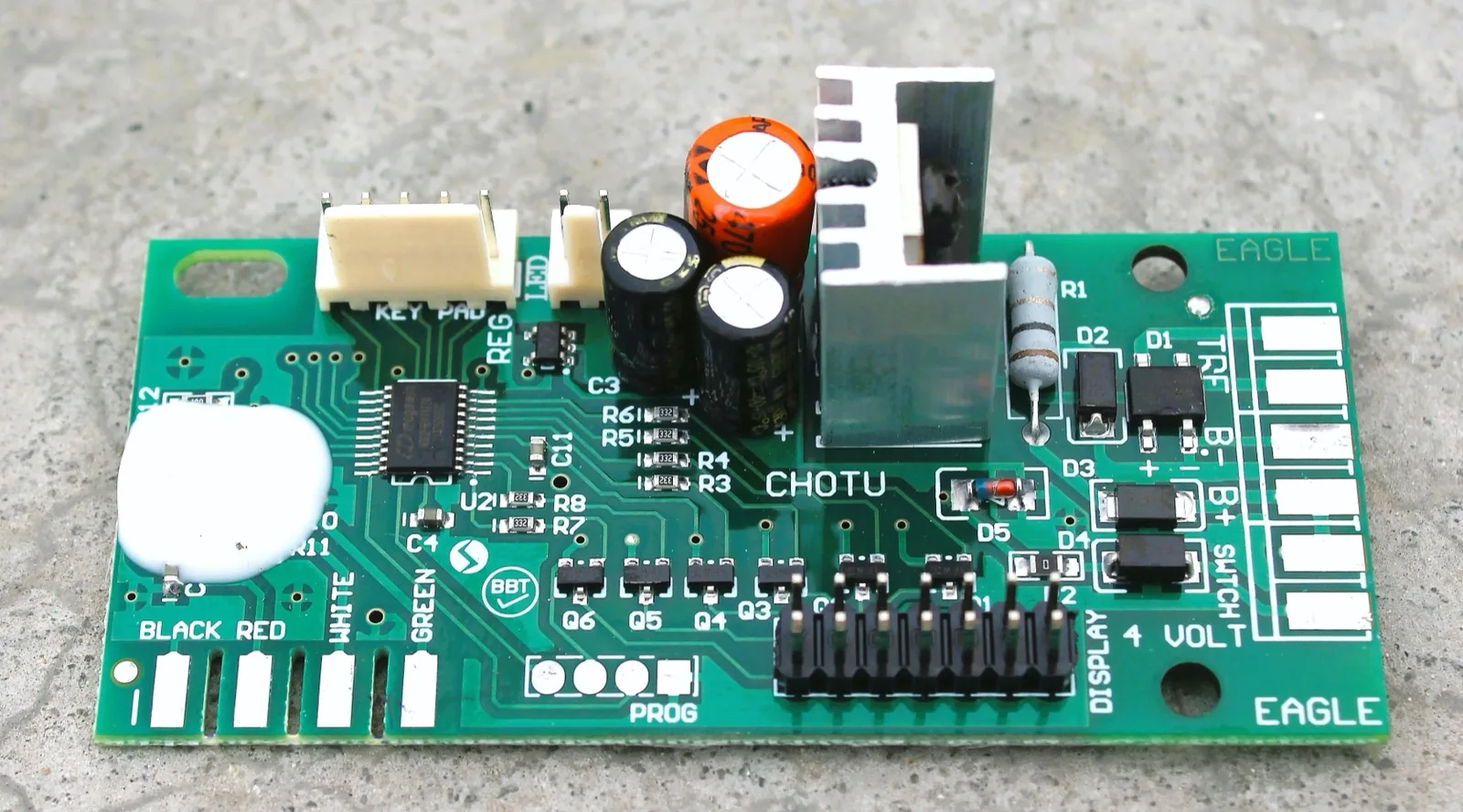

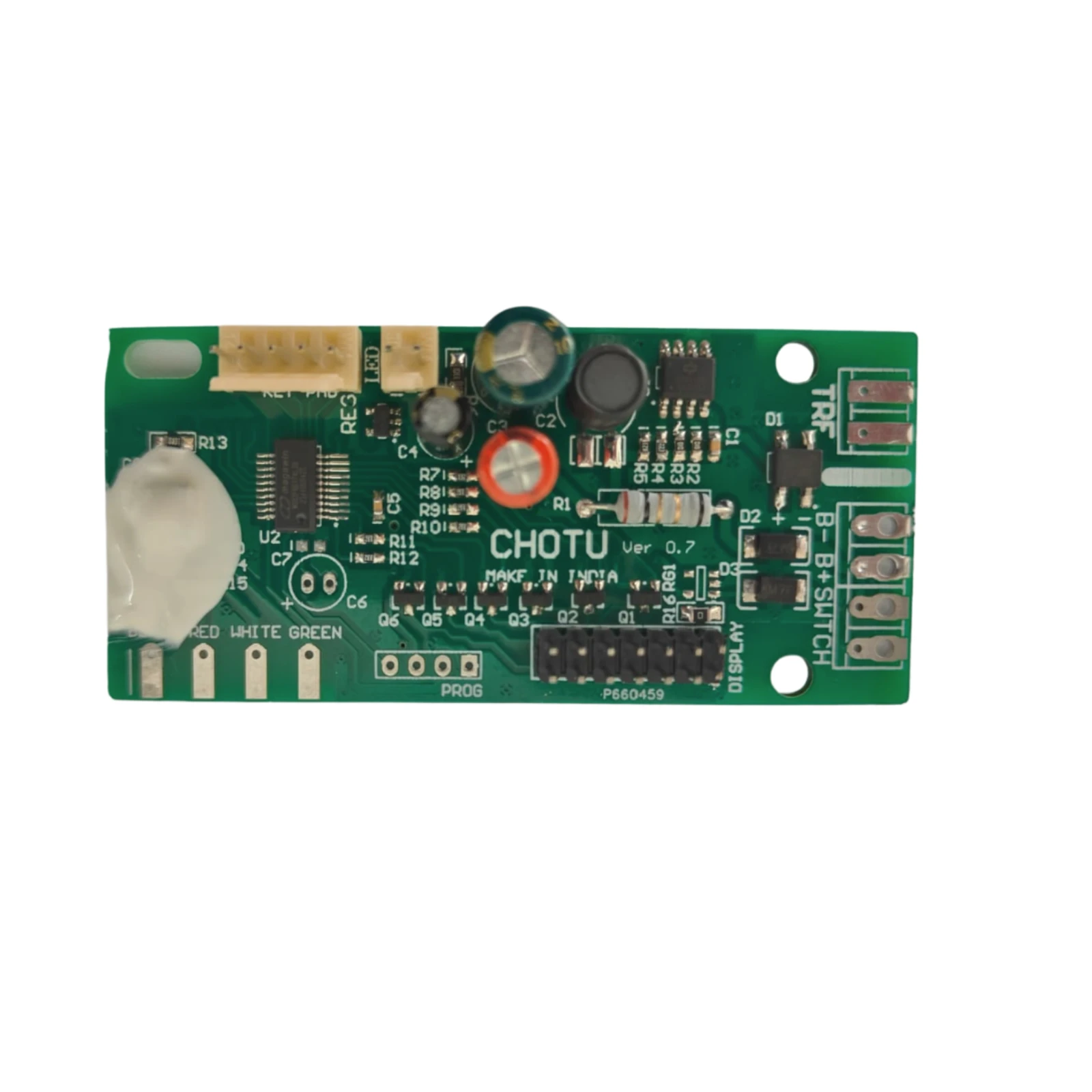

CHOTU Weighing Scale PCB
WEIGHING SCALE PCBA
78 x 36 mm
WEIGHING SCALE
The smallest board in its segment. The CHOTU runs on a 78 × 36 mm economy PCB, uses the high precision ADC, runs on 4V battery (Lithium/Lead acid), and is the standard choice for high-volume entry-level retail and table-top scales where every rupee in the BOM counts.
Specifications
| MODEL | CHOTU |
| ADC | Solidic 0809 |
| SOFTWARE | 7777 Bobby |
| PCB SIZE | 78 × 36 mm |
| PCB GRADE | 1.6 mm thickness · FR4 |
| PROTECTION | Reverse battery |
| MODE FUNCTIONS | Hold / piece-counting / kg / litre |
| DISPLAY COMPATIBLE | 0.56″, 0.8″ inches |
| LED | Dual for mains and battery |
| RS-232 INTERFACE | NO |
| 5V ADAPTER | Supported |
| LITHIUM BATTERY | Supported |
Specifications
| CAPACITY | 3 cap. with 3 step accuracy |
| DUMMY ZERO | YES |
| AIR LOCKING | YES |
| AUTO ZERO | YES |
| CAL LOCK | NO |
| BUZZER PORT | NO |
| SLEEP MODE | YES |
| BATTERY BACKUP | Up to 50 hours |
| BATTERY SUPPORT | 4 VOLTS |
| THREE WIRE DISPLAY | NO |
| SEGMENT CONTROL | Transistor-based |
| POWER SUPPLY | Inbuild |
Features
Built into every Eagle Weigh card.
- ✓Smallest Eagle Weigh board (78 × 36 mm)
- ✓Build for table-top 30 kg up to 500 kg (and sometimes up to 1000 kg)
- ✓Transistor-based segment control
- ✓Lowest BOM cost in the range — high-volume OEMs
- ✓Moisture proof (All weather board)
- ✓Each board is packed in Bubble air locking technology
Used in
Where this card ships.
Table-top scalesPlatform scales
Compare with
More from the Eagle Weigh range.
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the CHOTU for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelCHOTU
CategoryWeighing Scale PCB
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
