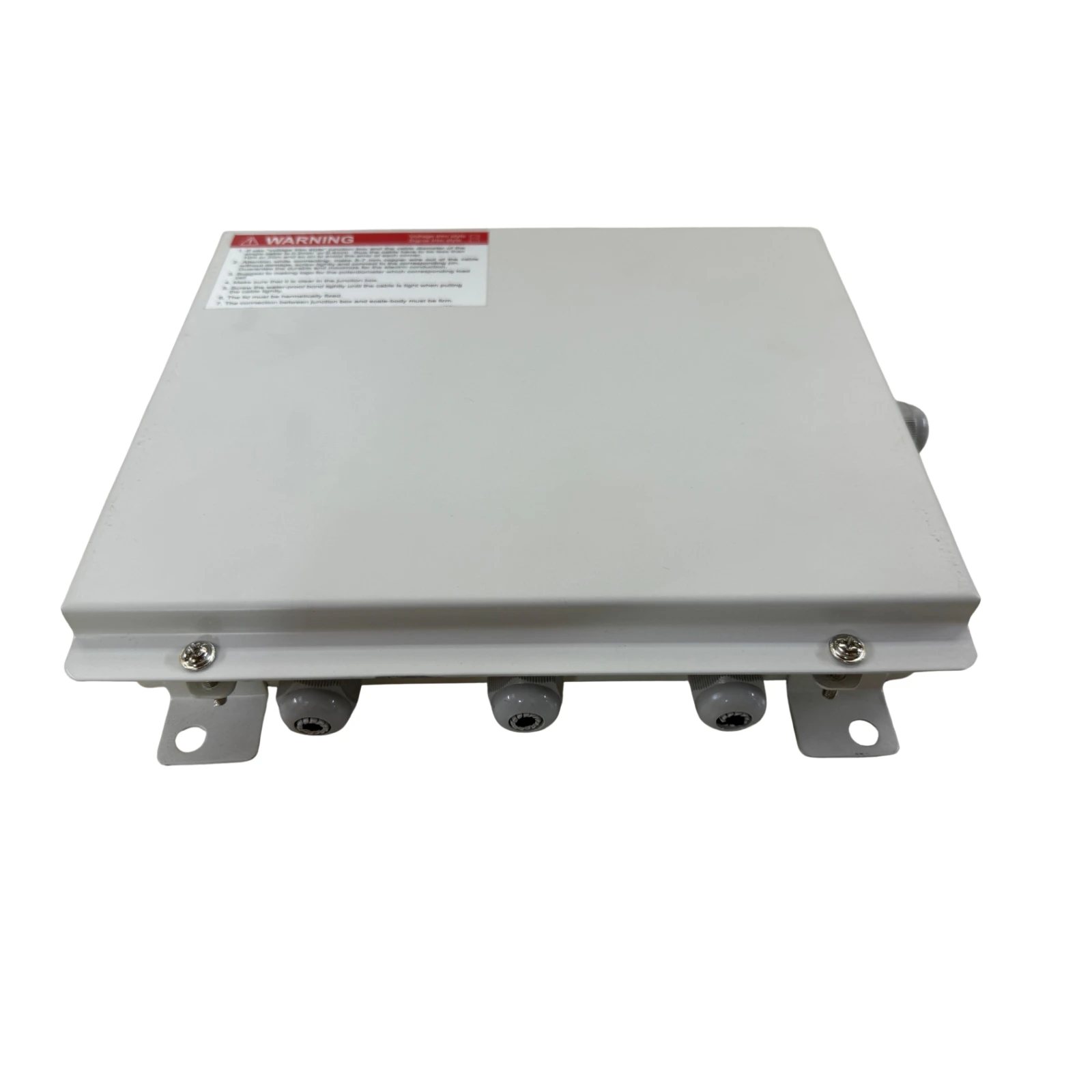

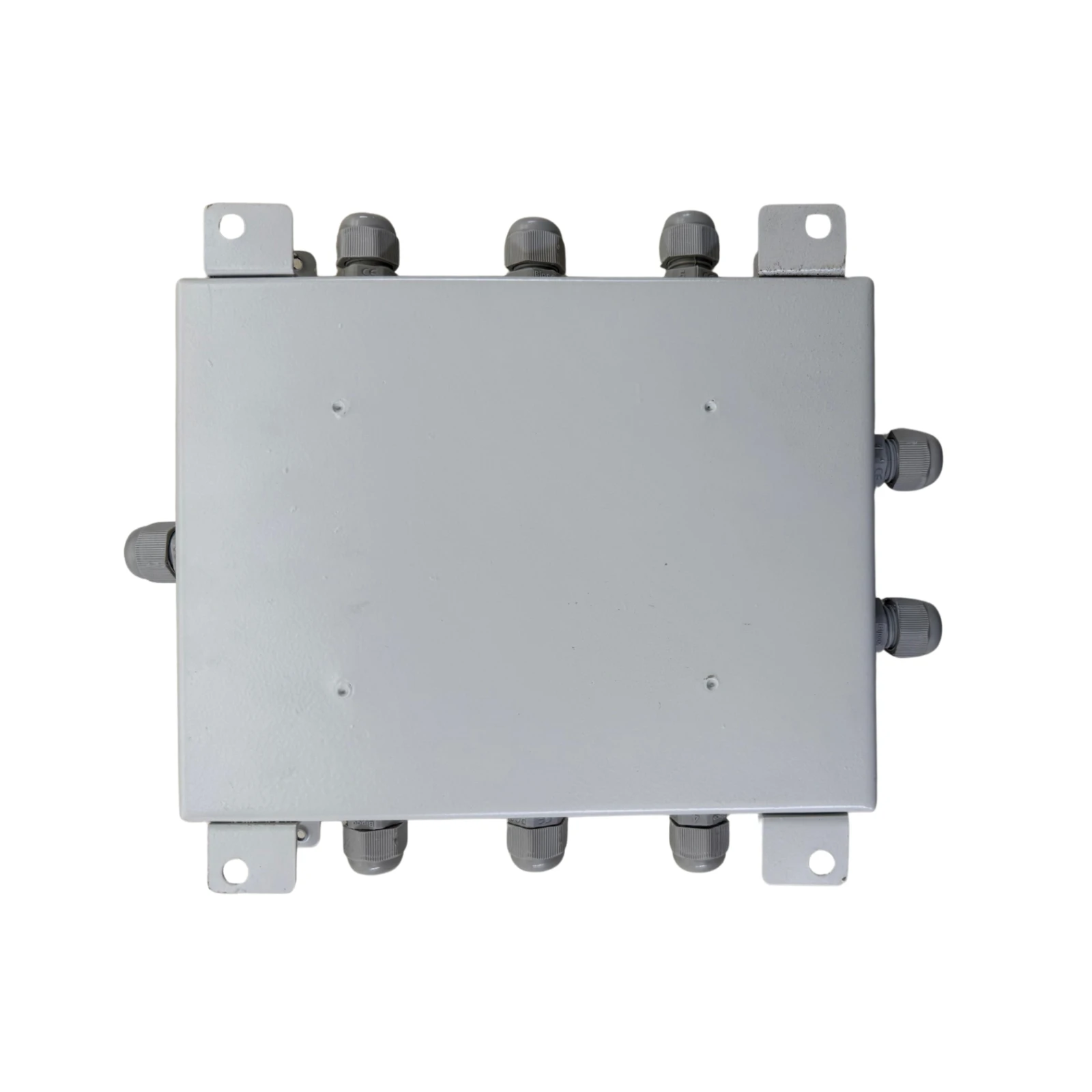

MODEL NO. :
EGL JB-03
DIGITAL
METAL CABINET
WEIGHBRIDGE
Digital junction box serves as the central electrical hub that connects multiple load cells, creating a unified weighing system. It collects, balances, and transmits weight signals from sensors to the main weighing indicator. A single hub for digital loadcells with pluggable terminal blocks.
Specifications
| USAGE | UPTO 8 DIGITAL LOADCELLS |
| MATERIAL | METAL CABINET WITH POWDER COATING |
| TYPE | JUNCTION BOX |
| PROTECTION | IP68 · DUST PROOF · WATER RESISTANT |
| SURGE / LIGHTNING | BUILT-IN-PROTECTION |
| PCB GRADE | DOUBLE SIDED FR4 |
| CABLE GLAND | PG9 |
| AVAILABILTY | 4/6/8 WAY |
Applications
| TRUCK WEIGHBRIDGE | Yes |
| CABINET SIZE | 23 X 20 X 4.5 CM |
| CABINET COLOUR | WHITE |
| HOPPER / TANK | Yes |
| INSTALL | WEIGHBRIDGE UNDER PIT |
| SINGLE NET WEIGHT | 1.260 KG |
| ORIGIN | MADE IN INDIA |
Features
What the EGL JB-03 gives you.
- ✓Built for digital load cells — addressed pluggable terminals
- ✓Each cell identified individually by the terminal
- ✓IP68 — dust-proof and water-resistant
- ✓Built-in surge and lightning protection
- ✓Heavy duty metal enclosure
- ✓On board GDT technology to handle very high surcharge currents
Used in
Where this EGL JB-03 junction box ships.
Truck weighbridgesPit & pitless weighbridgesPlatform scalesHopper & tank weighingIndustrial automation
Compare with
Other junction-box variants.
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the EGL JB-03 for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelEGL JB-03
CategoryLoad-cell junction box
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
