MODEL NO. :

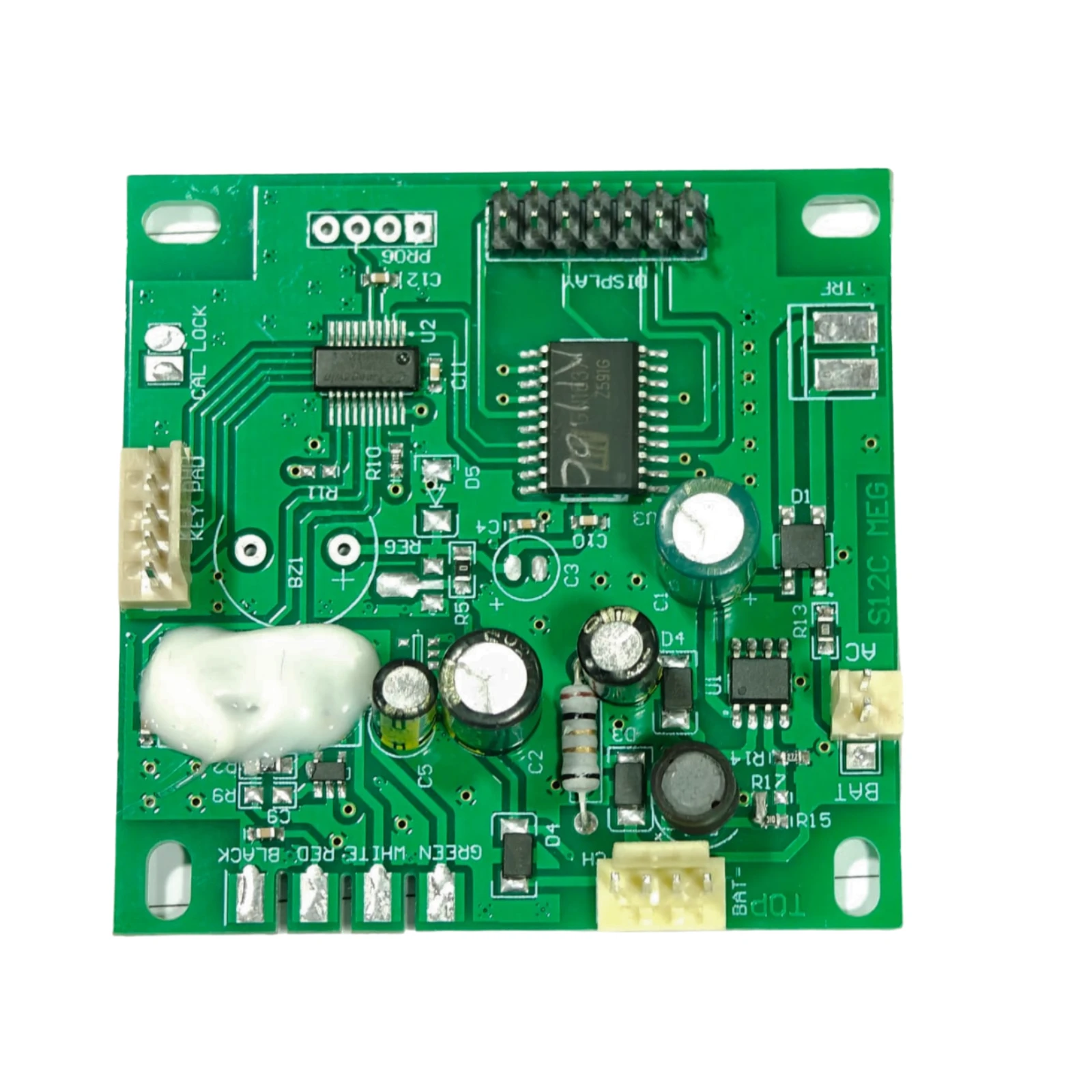

S12 Weighing Scale PCB
WEIGHING SCALE PCBA
63 X 63 MM
WEIGHING SCALE
The S12 model is specially designed for fast charging and maintaining battery health. It comes with buzzer port, high precision ADC and dual led support. This is all weather board and has ability to last for 5 years.
Specifications
| MODEL | S12 |
| ADC | HX710 |
| SOFTWARE | 7777 bobby |
| PCB SIZE | 63 x 63 mm |
| PCB GRADE | 1.6 mm thickness · FR4 |
| PROTECTION | Reverse battery |
| CHARGING HEAT LOSS | NO |
| MODE FUNCTIONS | Hold / piece-counting / kg / litre |
| DISPLAY COMPATIBLE | 0.56″, 0.8″ inches |
| LED | Dual for mains and battery |
| RS-232 INTERFACE | NO |
| 5V ADAPTER | Supported |
| LITHIUM BATTERY | Supported |
Specifications
| CAPACITY | 3 cap. with 3 step accuracy |
| DUMMY ZERO | Yes |
| AIR LOCKING | Yes |
| AUTO ZERO | Yes |
| CAL LOCK | Yes |
| BUZZER PORT | Yes |
| SLEEP MODE | Yes |
| BATTERY BACKUP | Up to 58 hours |
| THREE WIRE DISPLAY | NO |
| SEGMENT CONTROL | Driver IC based |
| POWER SUPPLY | Inbuild |
| MOISTURE PROOF | YES |
Features
Built into every Eagle Weigh card.
- ✓Fast charging motherboard with no heat loss
- ✓Buzzer port and Dual led function with double layer motherboard
- ✓Moisture proof (All weather board)
- ✓4 Volt PCB
Used in
Where this card ships.
Table-top scalesPlatform scales
Compare with
More from the Eagle Weigh range.
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the S12 for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelS12
CategoryWeighing Scale PCB
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
