MODEL NO. :

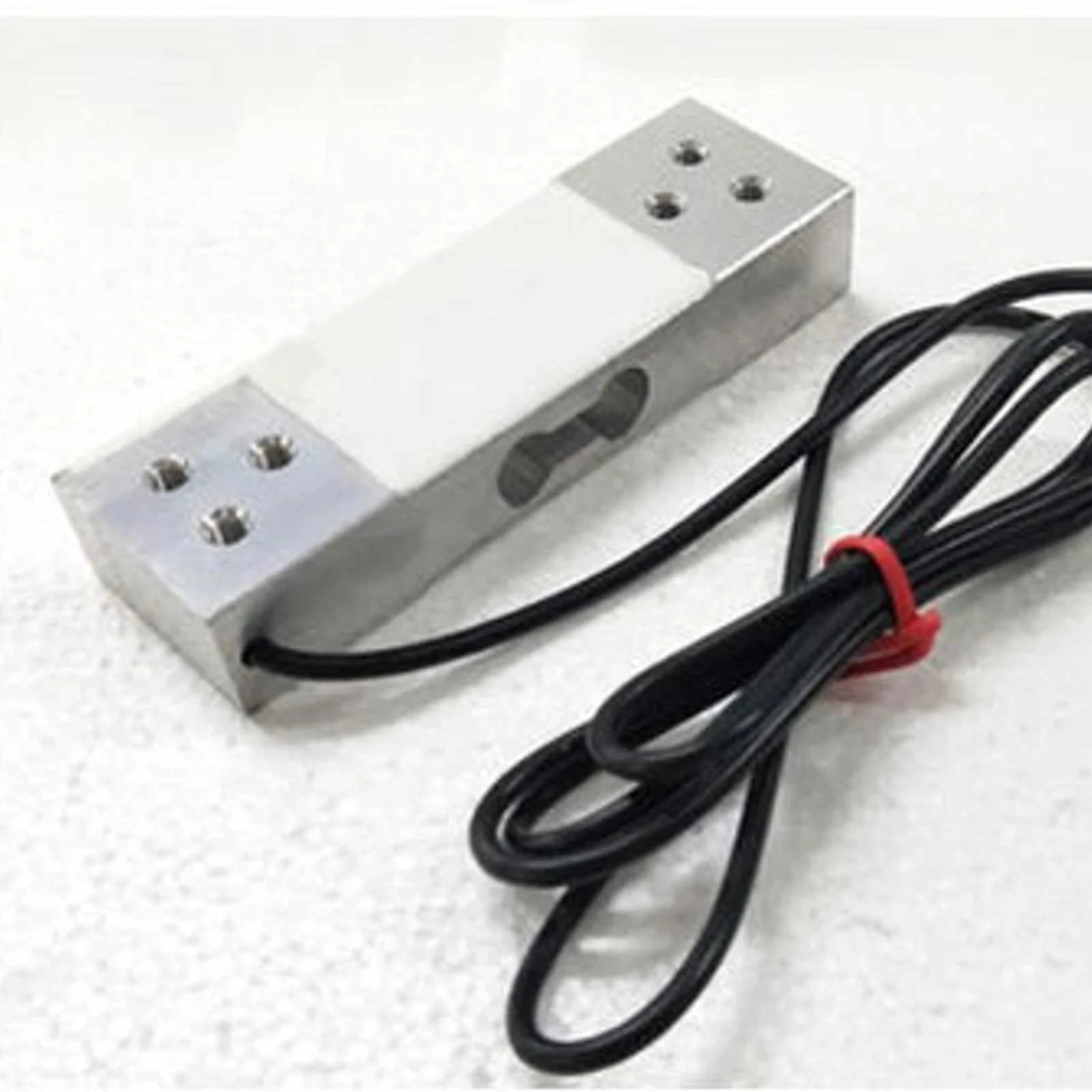

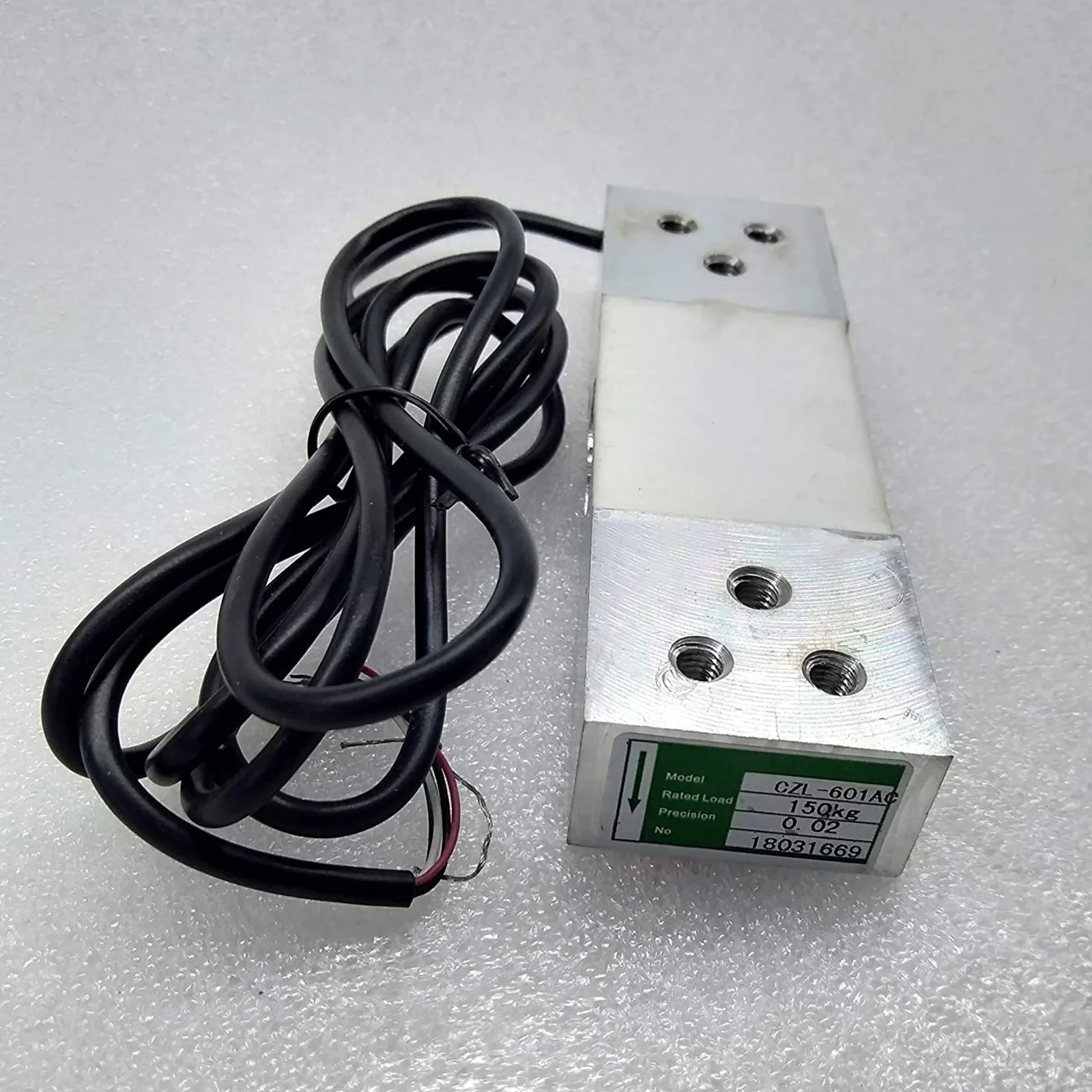

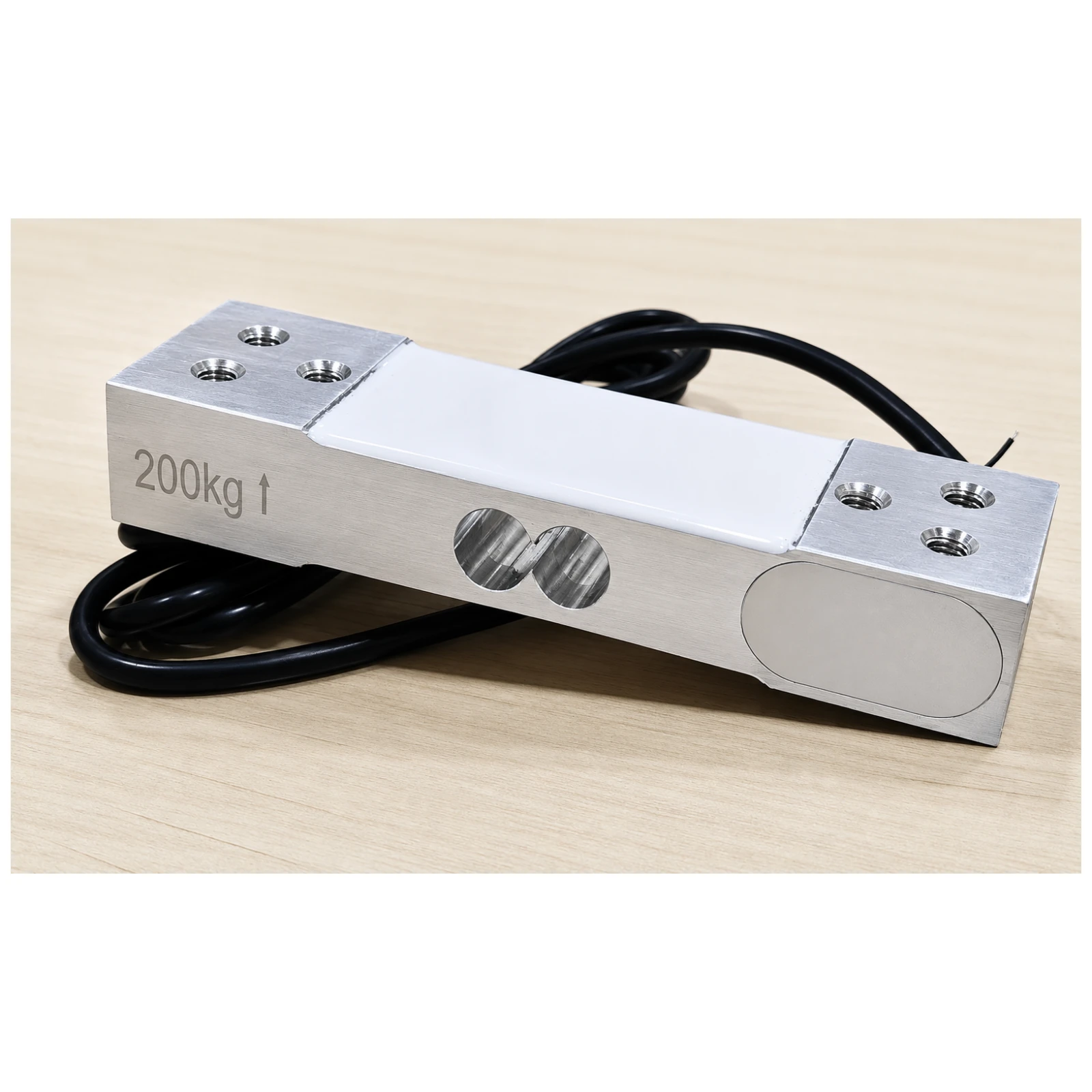

CZL 601 AC Load Cell
3 HOLE
120 kg, 150 kg , 200 kg
WEIGHING
CZL 601 AC – 3 hole Loadcell is designed for off-center load, made of anodized aluminum alloy with IP 65 protection. Weighing Scales for the Purpose of Verification (The recommended platform size is 400x400mm.)
Specifications
| FAMILY | Aluminium single-point |
| BRAND | Green Label CZL |
| Ingress Protection | IP65 |
| Creep Error (30 minutes) | +/-0.02% FS |
| Output Sensitivity(FS) | 2.0 +/- 0.1 mV/V |
| Recommended Excitation Voltage | 9 to 12V DC |
Specifications
| CAPACITY | 120 kg, 150 kg , 200 kg |
| STANDARD PACKAGING | 60 pcs |
Features
Built into every Eagle Weigh load cell.
- ✓Single-point load measurement capability when the load is off-center
- ✓Cell phone that is low-cost and discrete
- ✓Anodized aluminum alloy with a colorless finish
Used in
Where this load cell ships.
Weighing machinesElectronic measurement systemsIndustrial scales Chicken Scales
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the CZL 601 AC for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelCZL 601 AC
CategoryLoad Cell
OriginMade in china
Warranty
