MODEL NO. :

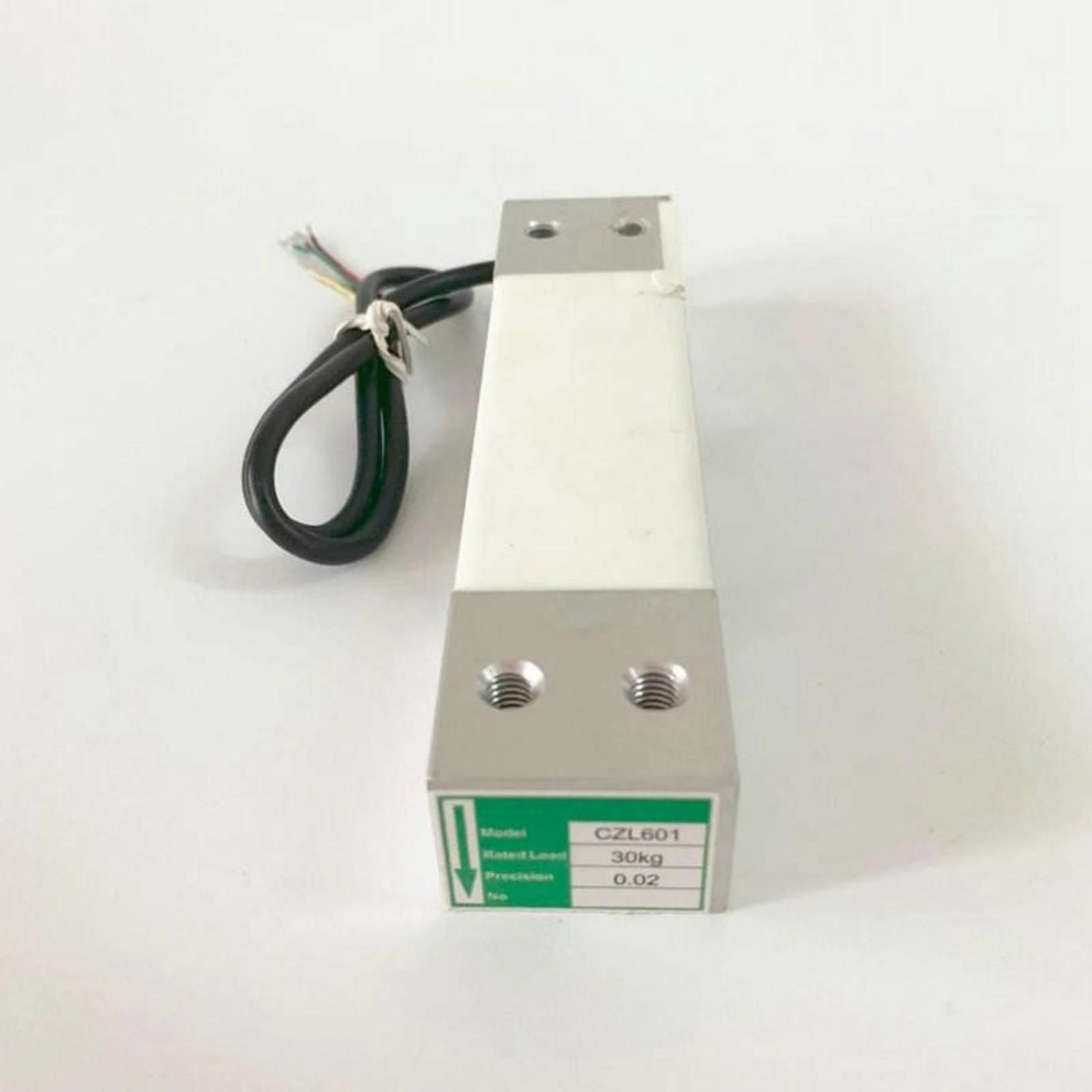

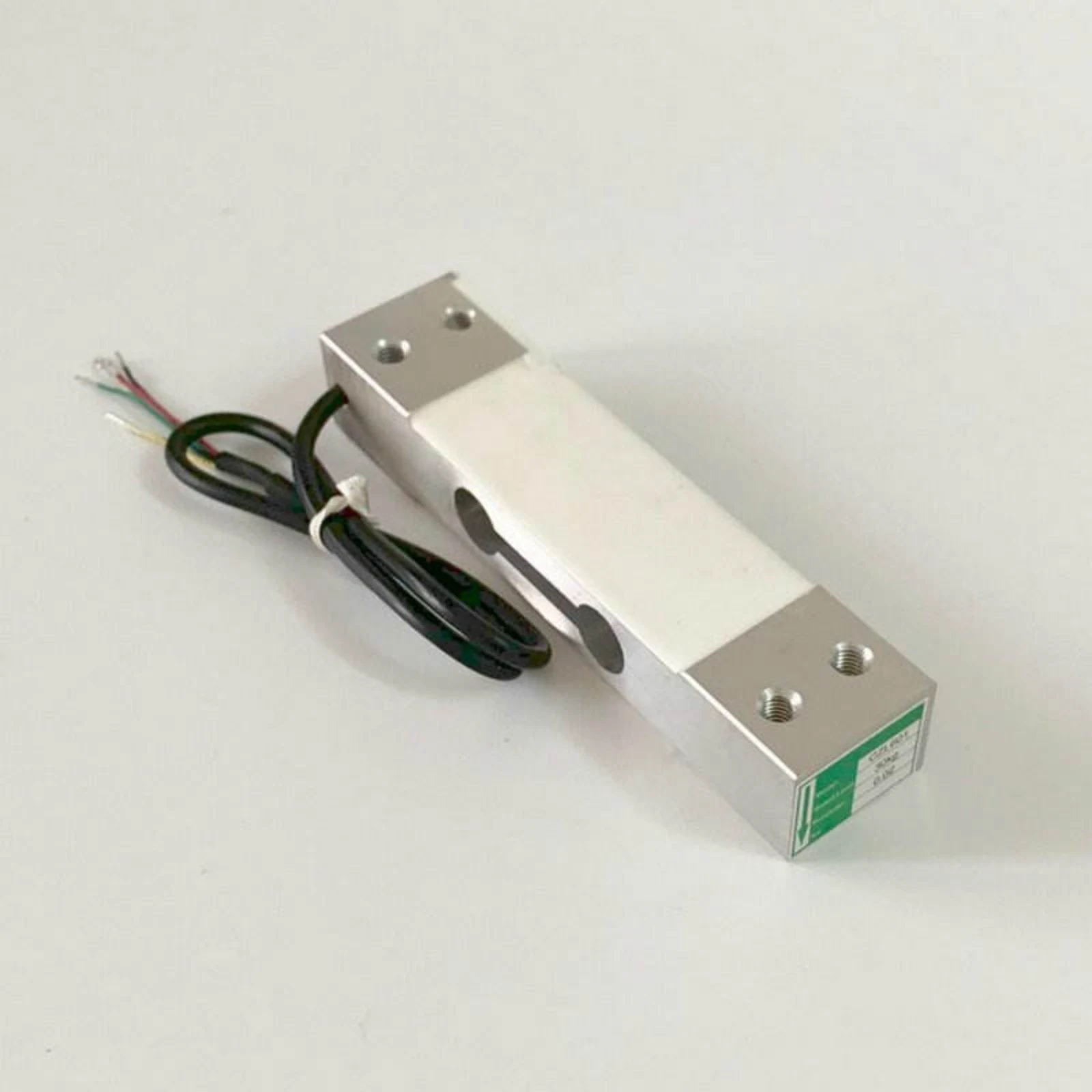

CZL 601 Load Cell
40kg parallel beam load cell
WEIGHING
The load cell is a transducer that converts a force such as tension, compression, pressure, or torque into an electrical signal that can be measured and standardized. These Load cells are designed with high-grade elements and construction materials for good environmental sealing and performance, this suits both Industrial and Commercial applications.
Specifications
| FAMILY | Aluminium single-point |
| BRAND | Green Label CZL |
| MATERIAL | Anodised aluminium alloy |
| RATED OUTPUT | 2.0±0.15 mV/V |
| Combined Error (%RO) | ≤±0.03 |
| Compensated temperature range (°C) | -10~+40 |
| Operating temperature range (°C) | -35~+80 |
Specifications
| STANDARD PACKAGING | 100 pcs |
| CAPACITY | 3 kg, 6 kg, 10 kg, 20 kg, 40 kg, 80 kg |
Features
Built into every Eagle Weigh load cell.
- ✓ IP67 Protection: Ensures the load cell is protected against dust and water, making it suitable for harsh environments and extending its operational life.
- ✓ Analog Output: Provides a continuous signal that can be easily integrated into various control systems for real-time monitoring and data acquisition.
- ✓High accuracy
- ✓Durable aluminum construction
- ✓Works with instrumentation amplifiers Strain gauge technology
- ✓Wide operating temperature range
Used in
Where this load cell ships.
Weighing machinesElectronic measurement systemsUniversal testing machines Industrial scales
Compare with
More from the Eagle Weigh range.
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the CZL 601 for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelCZL 601
CategoryLoad Cell
OriginMade in china
