MODEL NO. :
CZL 882 Load Cell
GATTU 88 MM
20KG, 40KG, 80KG
WEIGHING

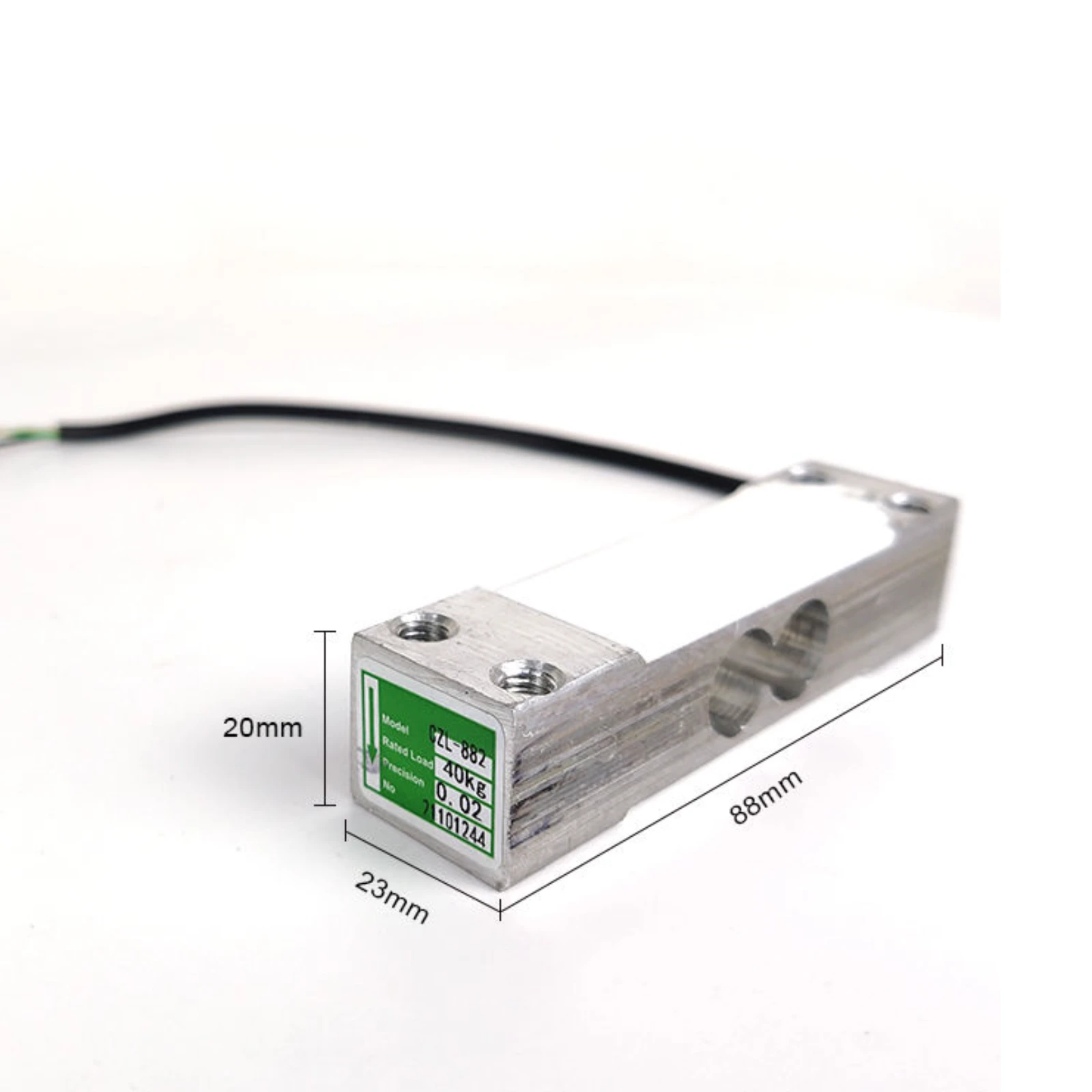

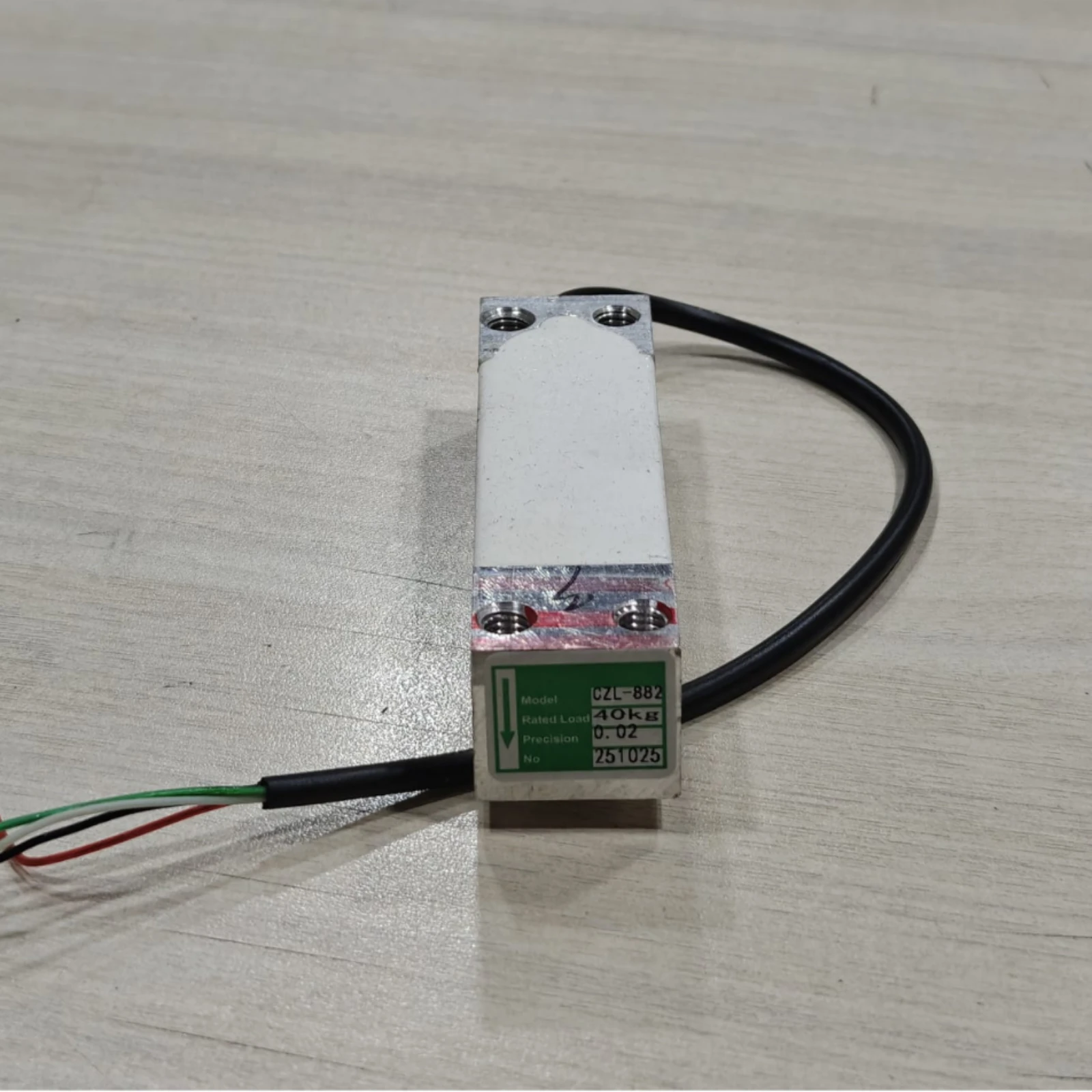

The Model 882 is a low profile single-point load cell designed for direct mounting in low cost weighing platforms. Its small physical size, combined with high accuracy and aluminum construction, makes this low cost load cell ideally suited for retail, bench and counting scales. Using Model 882 load cells simplifies scale construction, which results in significant parts and labor savings.
Specifications
| Load Cell Type | Single Point |
| Capacity | 10kg, 20kg, 40kg, 80kg |
| Ingress Protection | IP65 |
| Output Sensitivity | 2.0 mV/V |
| Output Sensitivity(FS) | 2.0 +/- 0.1 mV/V |
| Creep Error (30 minutes) | +-0.02% F.S. |
| Maximum Safe Overload | 120% FS |
| unting Type | Single Point Load Cell |
Specifications
| Method of connecting wire | Red E+ Black E- White S+ Green S- |
| Standard packing | 200 pcs |
Used in
Where this load cell ships.
Small Weighing ScalesTable Top ScalesBench ScalesPrecision Weighing Systems
Compare with
More from the Eagle Weigh range.
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the CZL 882 for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelCZL 882
CategoryLoad Cell
OriginMade in china
Warranty
