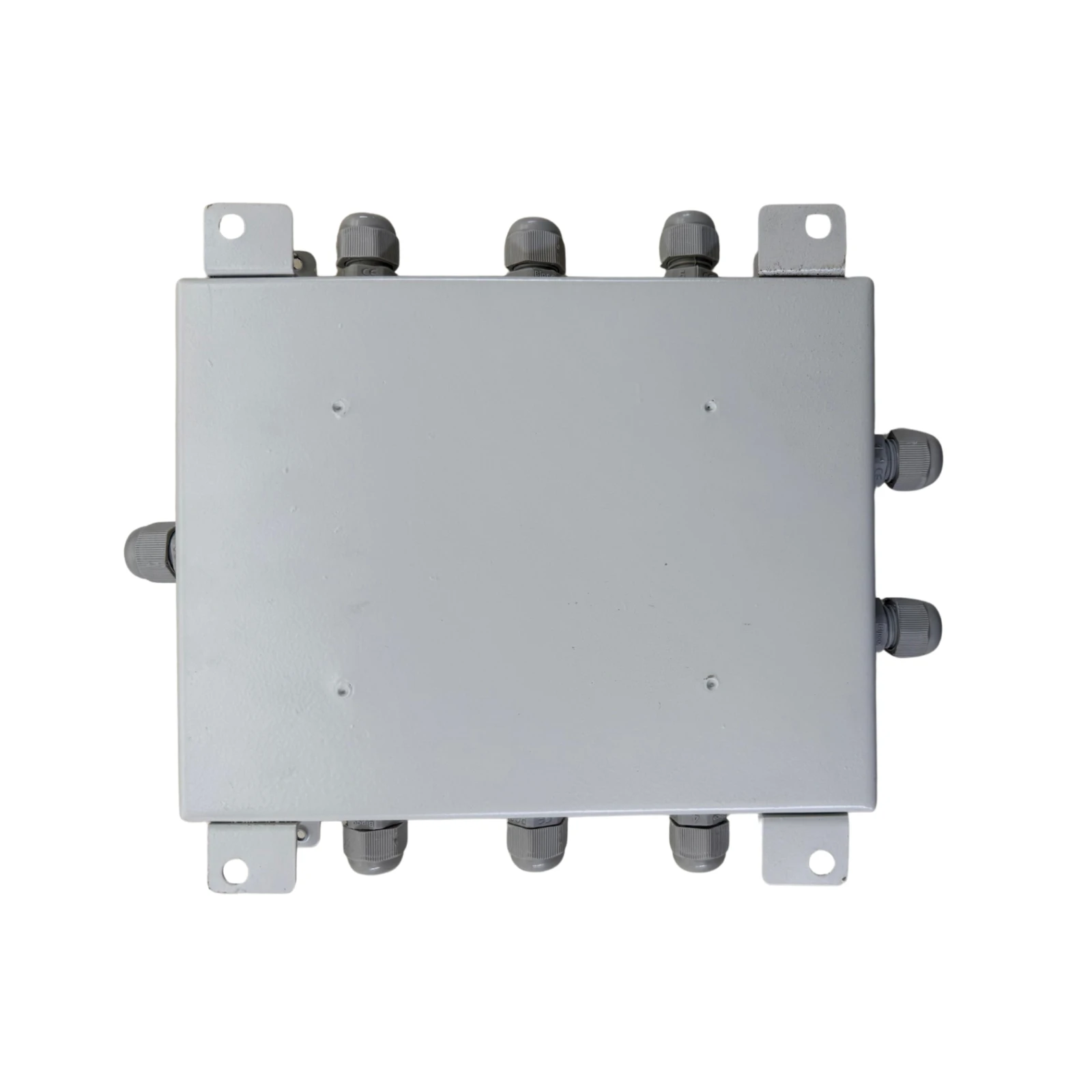

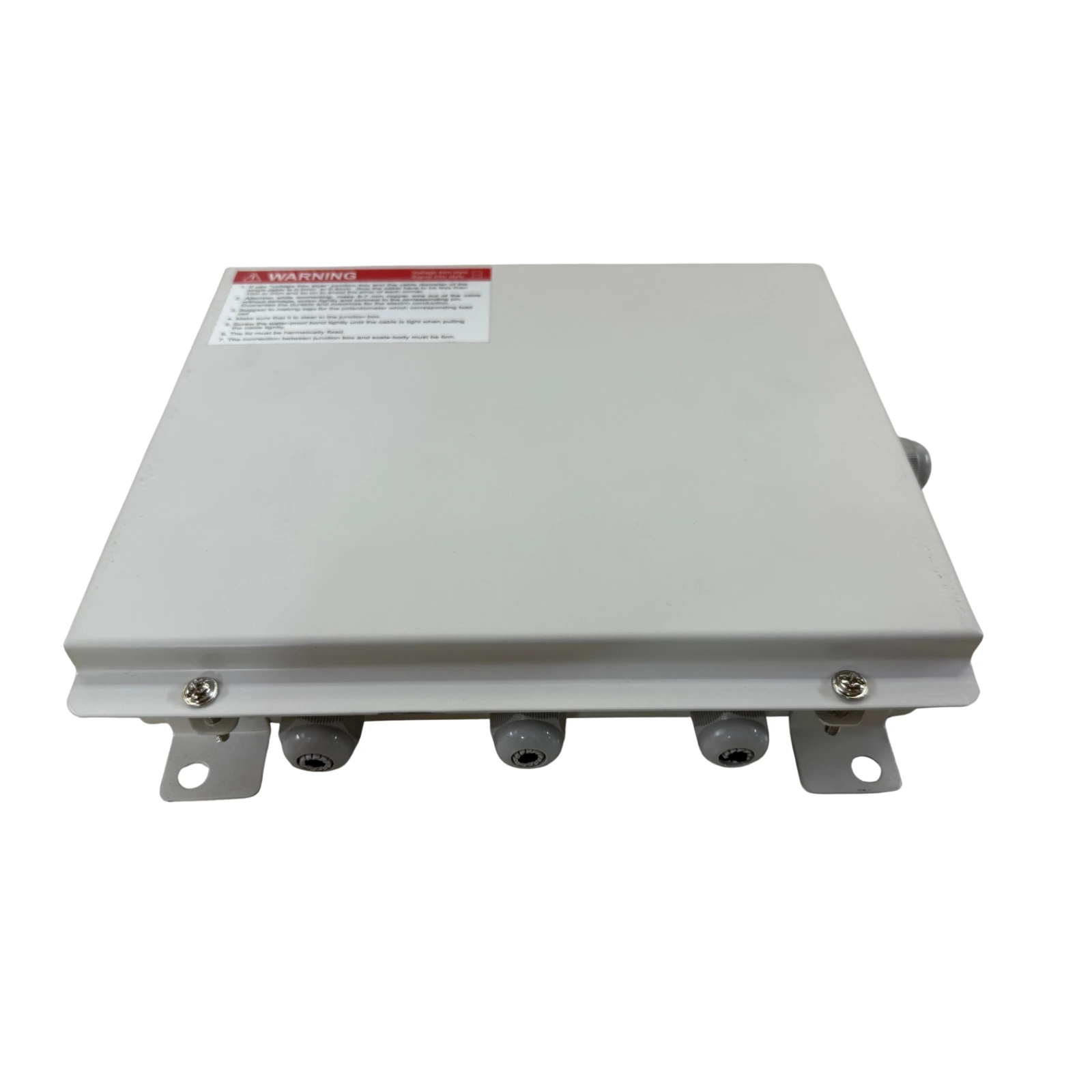

MODEL NO. :
EGL JB-02
ANALOG
METAL CABINET
WEIGHBRIDGE
The box features a double-sided summing PCB with on-board trimpots for precise corner correction, allowing cell-by-cell platform balancing during commissioning. Its enclosure is IP68-rated, making it dust-proof and water-resistant. Additionally, it includes built-in surge and lightning protection, ideal for outdoor pit installations.
Specifications
| USAGE | UPTO 8 LOADCELLS |
| MATERIAL | METAL CABINET WITH POWDER COATING |
| TYPE | JUNCTION BOX |
| PROTECTION | IP68 · DUST PROOF · WATER RESISTANT |
| SURGE / LIGHTNING | Built-in protection |
| PCB GRADE | DOUBLE SIDED FR4 |
| CABLE GRADE | PG9 |
| CORNER CORRECTION | TRIM-POT (PRESET) |
Applications
| TRUCK WEIGHBRIDGE | Yes |
| CABINET SIZE | 23 X 20 X 4.5 CM |
| CABINET COLOUR | WHITE |
| HOPPER / TANK | Yes |
| INSTALL | WEIGHBRIDGE UNDER PIT |
| SINGLE NET WEIGHT | 1.350 KG |
| ORIGIN | MADE IN INDIA |
| AVAILABILITY | 4/6/8 WAY |
Features
What the EGL JB-02 gives you.
- ✓Sums up to 8 analogue load cells on a double-sided PCB
- ✓Built-in surge and lightning protection
- ✓Heavy duty metal enclosure
- ✓On- board corner correction / load-cell balancing
Used in
Where this EGL JB-02 junction box ships.
Truck weighbridgesPit & pitless weighbridgesPlatform scalesHopper & tank weighingIndustrial automation
Compare with
Other junction-box variants.
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the EGL JB-02 for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelEGL JB-02
CategoryLoad-cell junction box
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
