MODEL NO. :
EGL JB-01
ABS CABINET
UPTO 8 LOADCELL
WEIGHBRIDGE

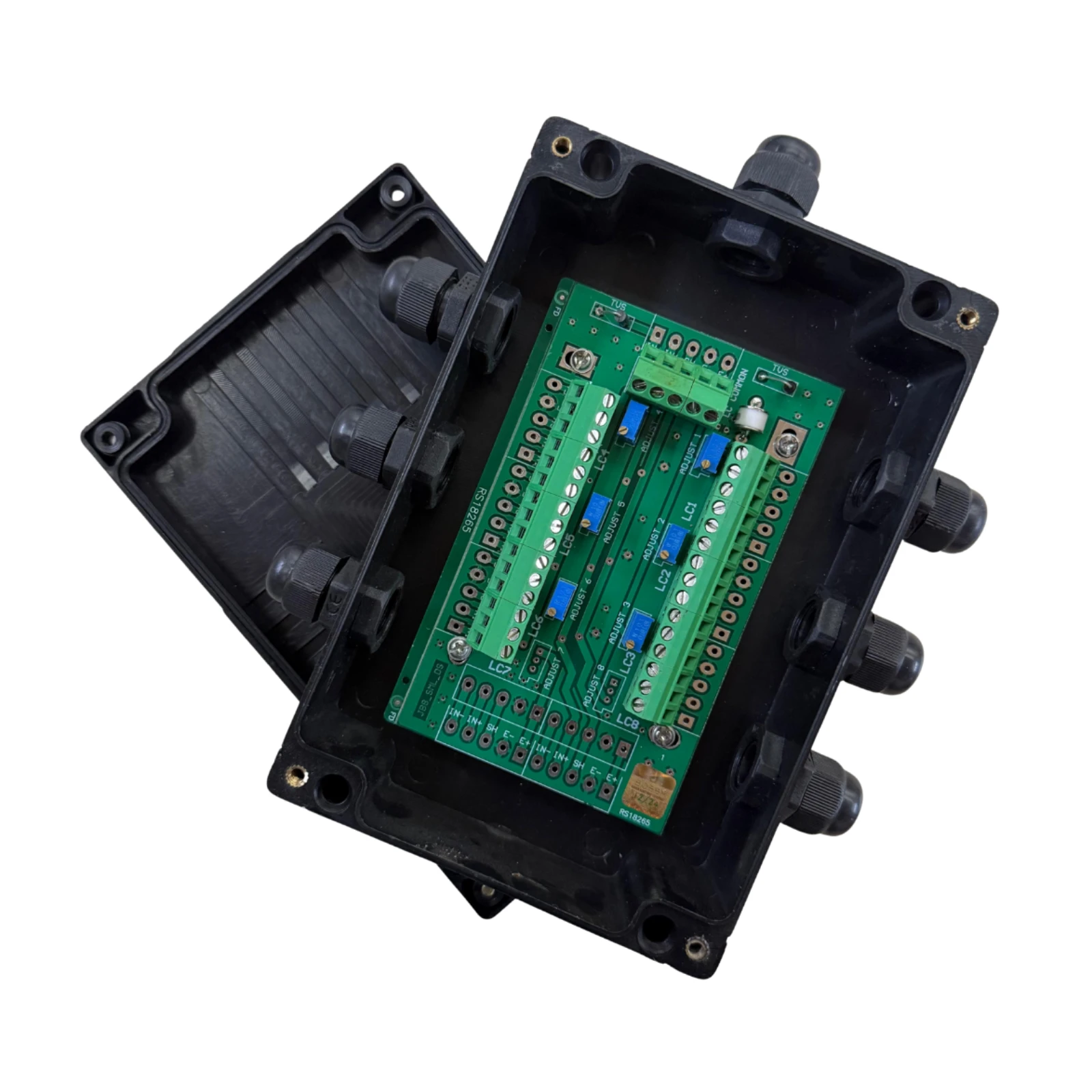

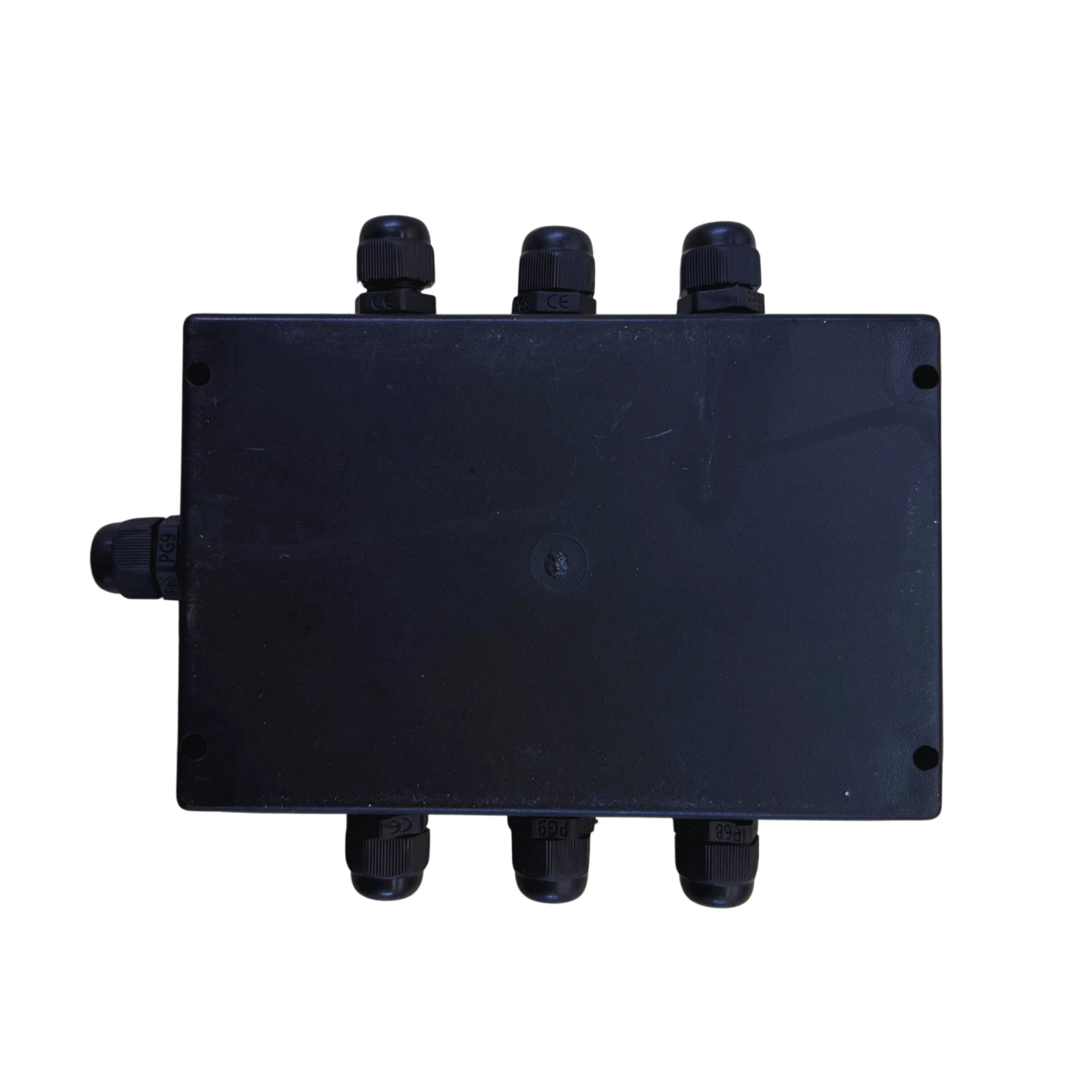

The ABS Junction box features on-board trimpots for precise corner correction, Double layer PCB with top grade PG9 and Terminal Blocks. Its enclosure is IP68-rated, making it dust-proof and water-resistant. Additionally, it includes built-in surge and lightning protection, ideal for outdoor pit installations.
Specifications
| USAGE | UPTO 8 LOADCELLS |
| MATERIAL | ABS |
| TYPE | JUNCTION BOX |
| PROTECTION | IP68 · DUST PROOF · WATER RESISTANT |
| SURGE / LIGHTNING | BUILT-IN-PROTECTION |
| PCB GRADE | DOUBLE SIDED FR4 |
| CABLE GLAND | PG9 |
| CORNER CORECTION | TRIM-POT (PRESET) |
| AVAILABILTY | 4/6/8 WAY |
Applications
| TRUCK WEIGHBRIDGE | Yes |
| CABINET SIZE (CM) | 18 X 12 X 5 CM |
| COLOUR | JET BLACK |
| HOPPER / TANK | Yes |
| INSTALL | WEIGHBRIDGE UNDER PIT |
| PAIRS WITH | CFR / CFG TERMINALS + INDICATORS |
| ORIGIN | MADE IN INDIA |
| SINGLE NET WEIGHT | 0.370 GRAMS |
Features
What the EGL JB-01 gives you.
- ✓Sums up to 8 load cells on a double-sided PCB
- ✓IP68 — dust-proof and water-resistant
- ✓Built-in surge and lightning protection
- ✓On-board corner correction / load-cell balancing
- ✓Sealed ABS enclosure for outdoor weighbridge pits
- ✓Pairs with EGL CFR / CFG terminals and indicators
Used in
Where this EGL JB-01 junction box ships.
Truck weighbridgesPit & pitless weighbridgesPlatform scalesHopper & tank weighingIndustrial automation
Compare with
Other junction-box variants.
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the EGL JB-01 for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelEGL JB-01
CategoryLoad-cell junction box
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
