MODEL NO. :

EGL PC01 Weighing Scale PCB

(PRICE COMPUTING + PIECE COUNTING)

16 KEY KEYPAD

WEIGHING SCALE

The retail POS card. Built on the 24-bit ADS1130 (Texas Instruments USA), the PC01 adds price-computing on top of hold and piece-counting — a per-second computation of price × weight. Up to 90 hours battery backup.

Specifications

MODEL	EGL PC 01
ADC	ADS1130 Texas Instruments U.S.A.
SOFTWARE	7777 Bobby

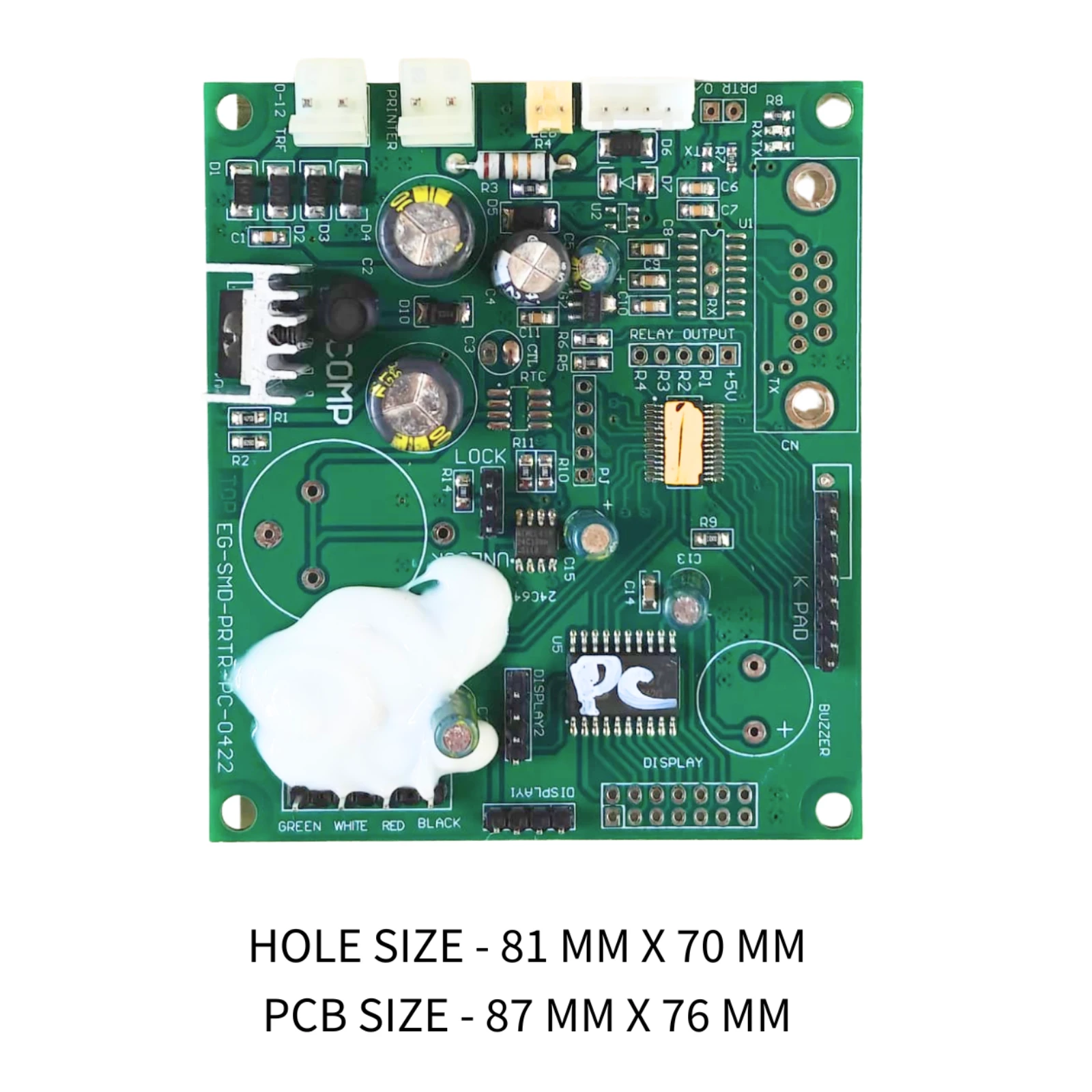

PCB SIZE	76 × 86 mm
PCB GRADE	1.6 mm thickness · FR4
HOLE MOUNTING SIZE	70 × 80 mm
PROTECTION	Reverse battery
MODE FUNTION	Counting/Computing mode in Rs. only/Computing mode in Rs. & paisa both

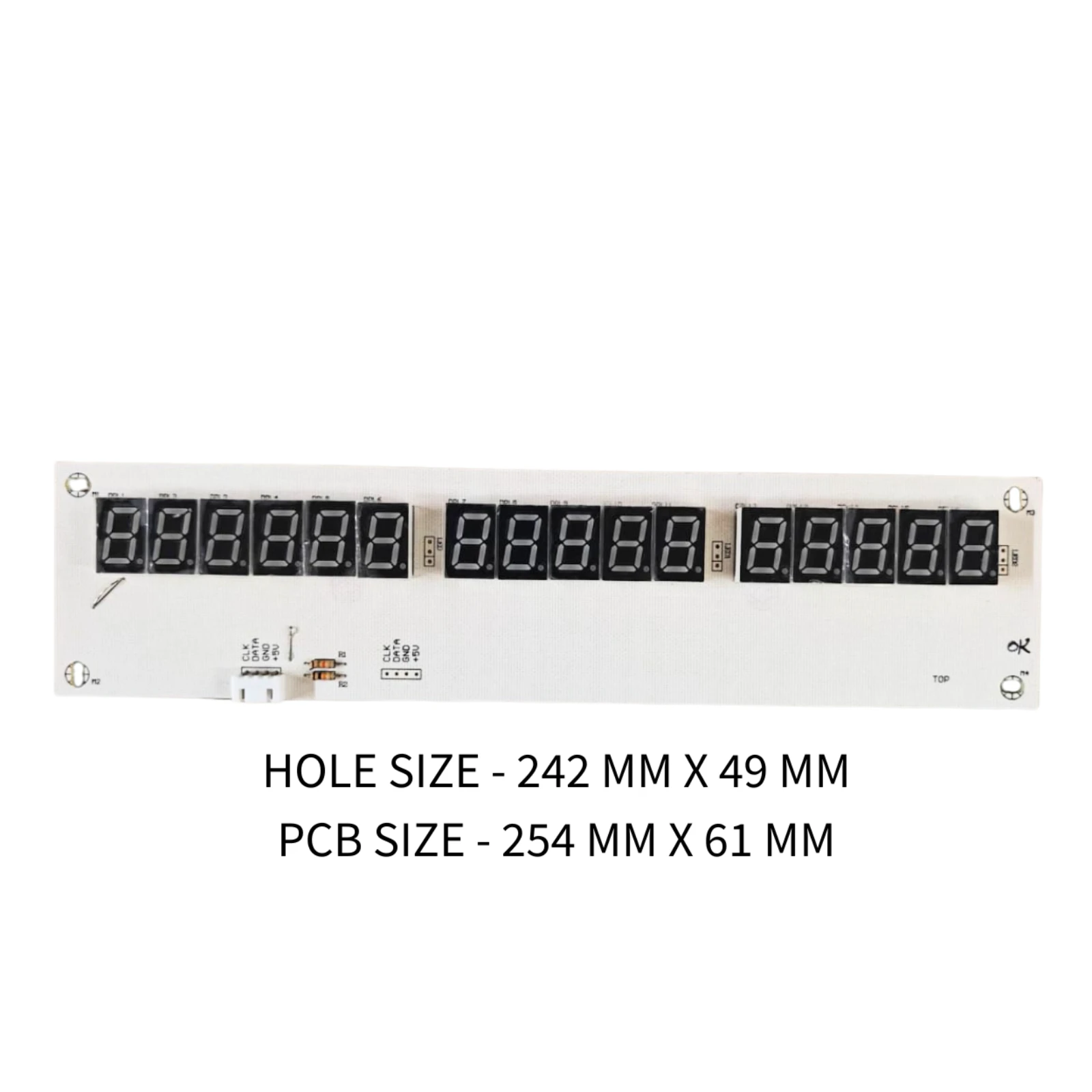

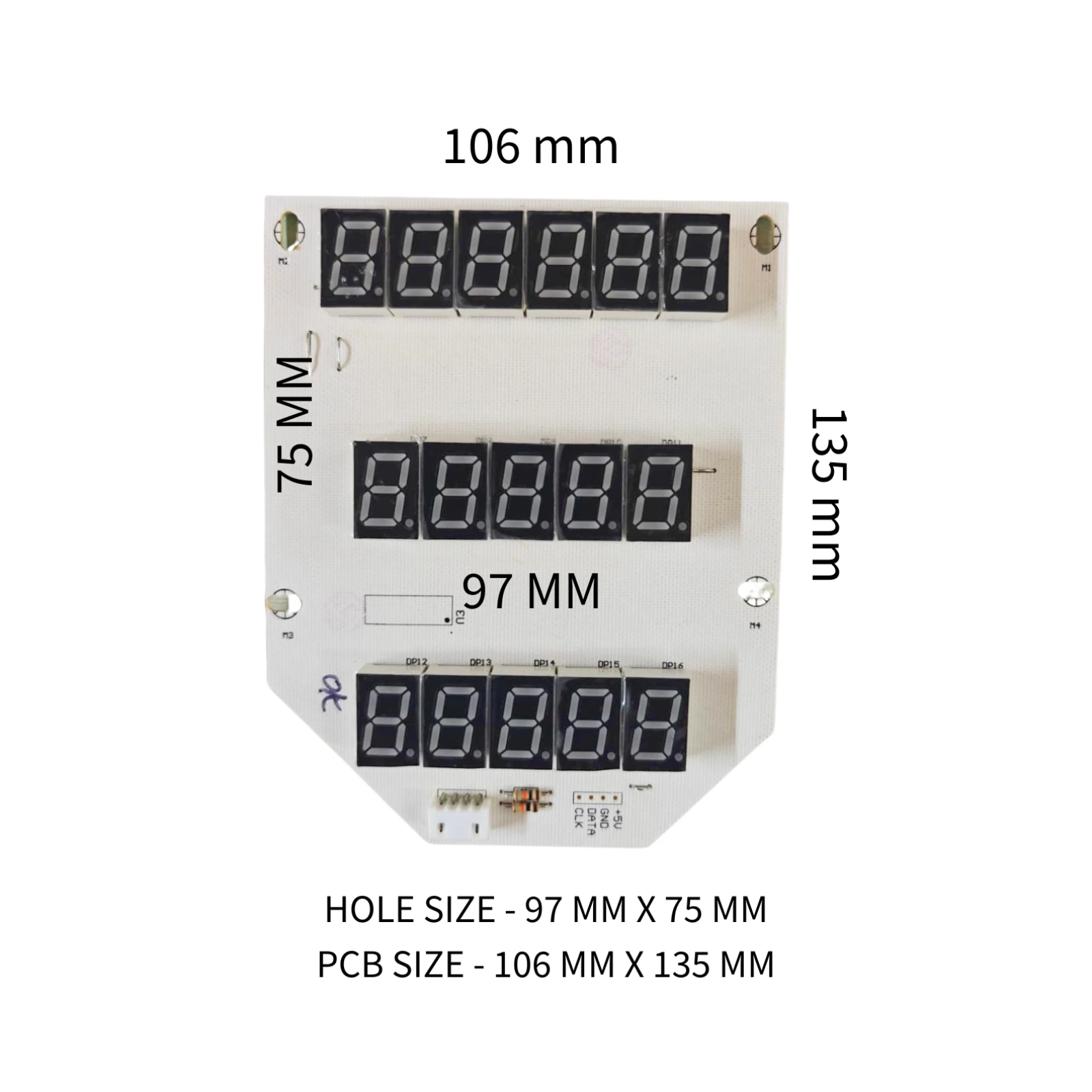

DISPLAY	Front/Pole (Via 4 Wire)
DISPLAY SEGMENT COLOR	Red/Green

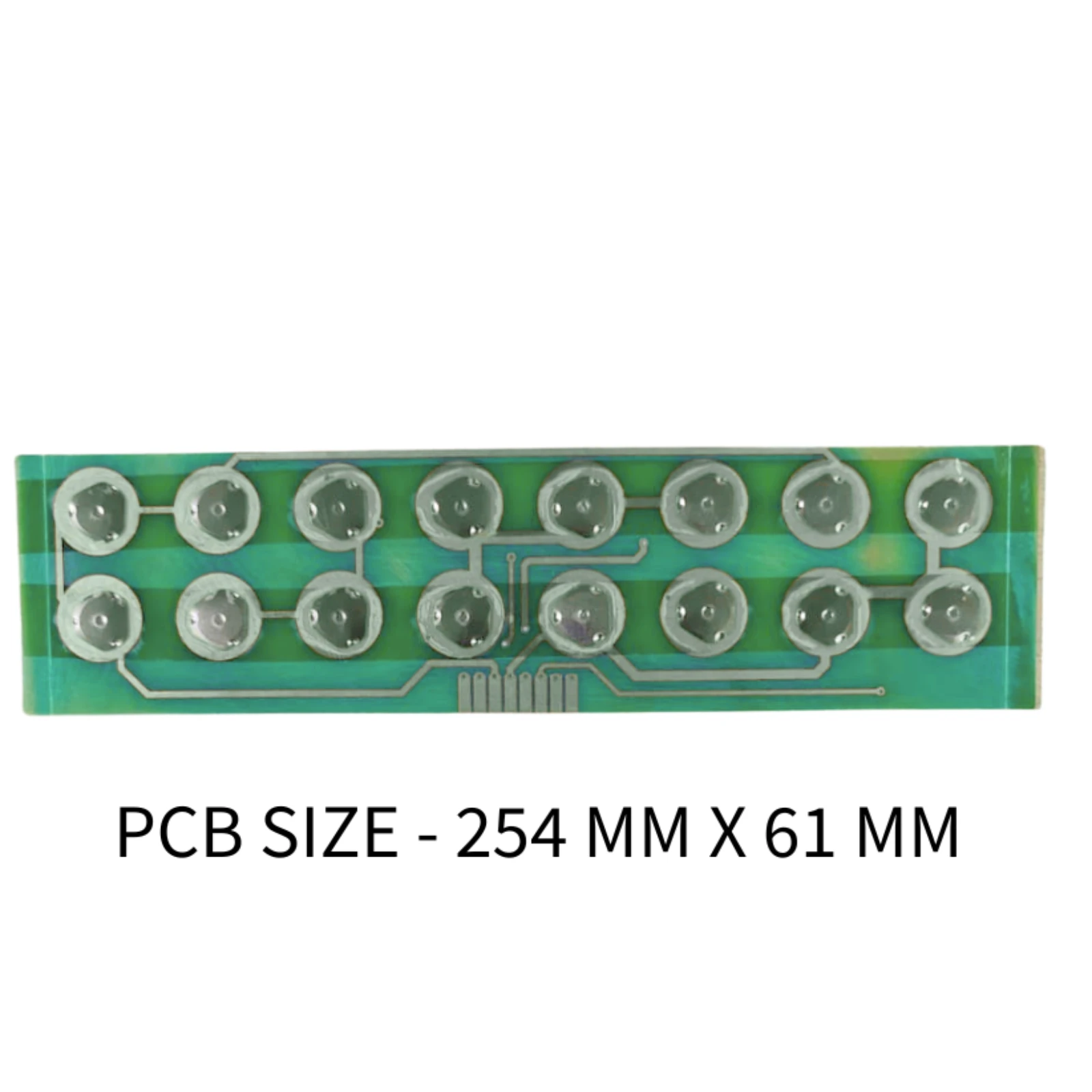

KEYPAD	16 KEY

Specifications

SLEEP MODE	Single Zero for battery saving
AUTO ZERO	YES
CAL LOCK	YES
BUZZER PORT	YES
THERMAL PRINTER 58 MM	OPTIONAL
BATTERY BACKUP	Up to 45 hours
BATTERY SUPPORT	6 VOLTS
SHORTCUT KEYS (PLU)	12 memory
FIRM NAME FEEDING FUNCTION	Yes

Features

Built into every Eagle Weigh card.

✓Comes with Price Look-Up (PLU) memory to store rates for frequent items.
✓To avoid manually counting hundreds of screws or buttons, you place a known sample quantity (e.g., 10 pieces) on the scale. The scale calculates the weight per piece and determines the exact total piece count when you pour the bulk inventory on the platform.

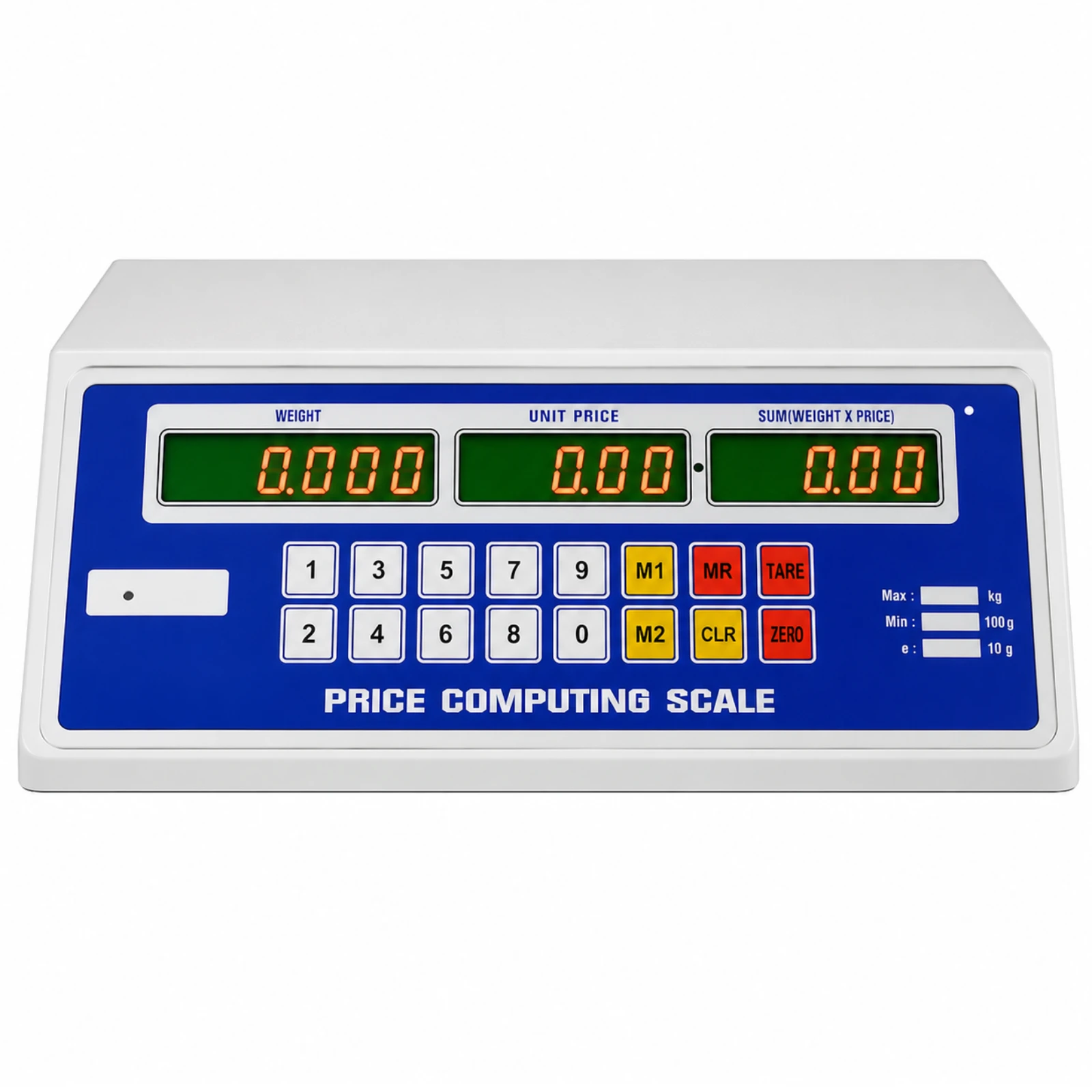

✓3 bright led displays to display weight, unit price and price
✓Numeric keyboard for easy entry of unit price
✓Power Saving Mode
✓Memory addition and recall function.

Used in

Where this card ships.

Retail counter scalesMandi / wholesale producePOS systemsFruit & vegetable countersGrocery shopsSweet shops & BakeriesSmall fastener/nut/bolt industries
