MODEL NO. :

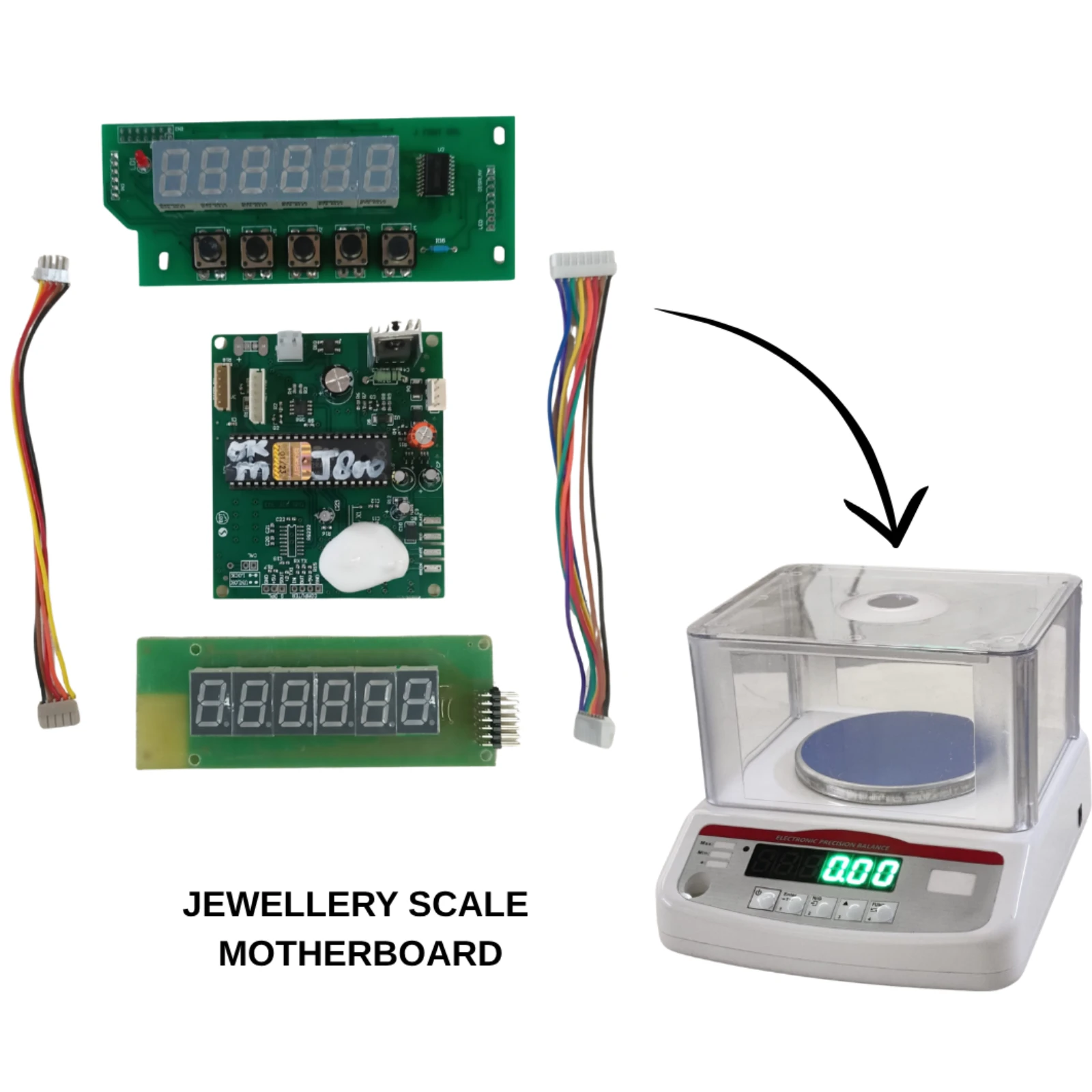

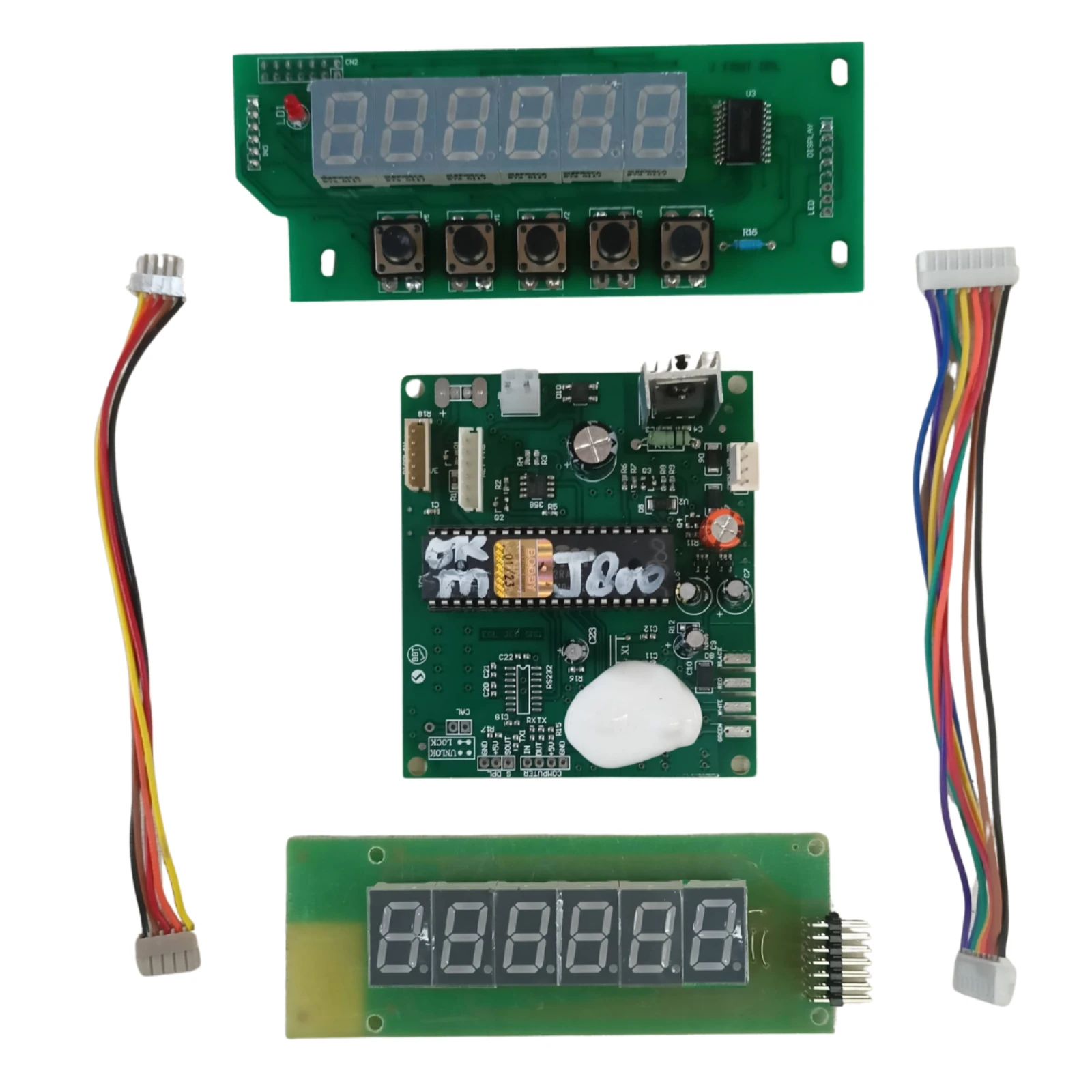

EGL J800 Weighing Scale PCB
JEWELLERY PCB
600g/10 mg
WEIGHING SCALE
Jewellery-grade precision. The J800 runs the 24-bit ADS1130 (Texas Instruments U.S.A.) with a 5-key keyboard and front on/off — tuned for jewellery workflows that need 5–10 mg resolution from 5 g up to 600 g. Pairs with the LCT-LAK load cell.
Specifications
| MODEL | EGL J800 |
| ADC | ADS1130 Texas Instruments U.S.A. |
| SOFTWARE | 7777 Bobby |
| PCB SIZE | 76 × 86 mm |
| PCB GRADE | 1.6 mm thickness · FR4 |
| HOLE MOUNTING SIZE | 70 × 80 mm |
| KEYPAD | 5-key with front on/off |

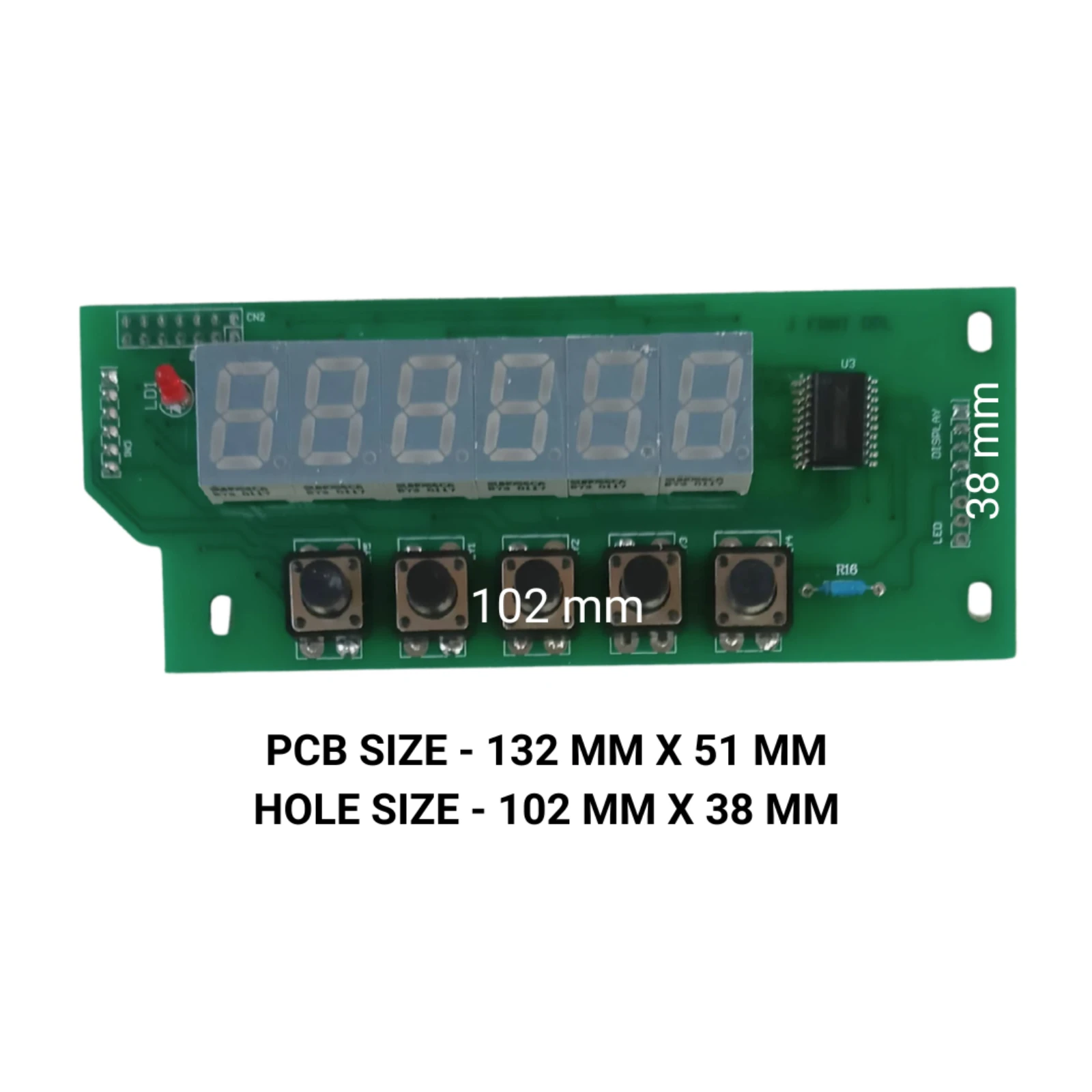

| FRONT DISPLAY | 5+6 Wire set |
| RS-232 INTERFACE | YES |
| BLUETOOTH | Optional |
| DISPLAY COLOR OPTION | Red/Green |
Specifications
| CAPACITY | Single Capacity |
| ACCURACY | 10 mg → 600 g / 1200 g |
| AUTO ZERO | YES |
| CAL LOCK | YES |
| BUZZER PORT | YES |
| SLEEP MODE | YES |
| BATTERY BACKUP | Up to 50 hours |
| BATTERY SUPPORT | 6 VOLTS |

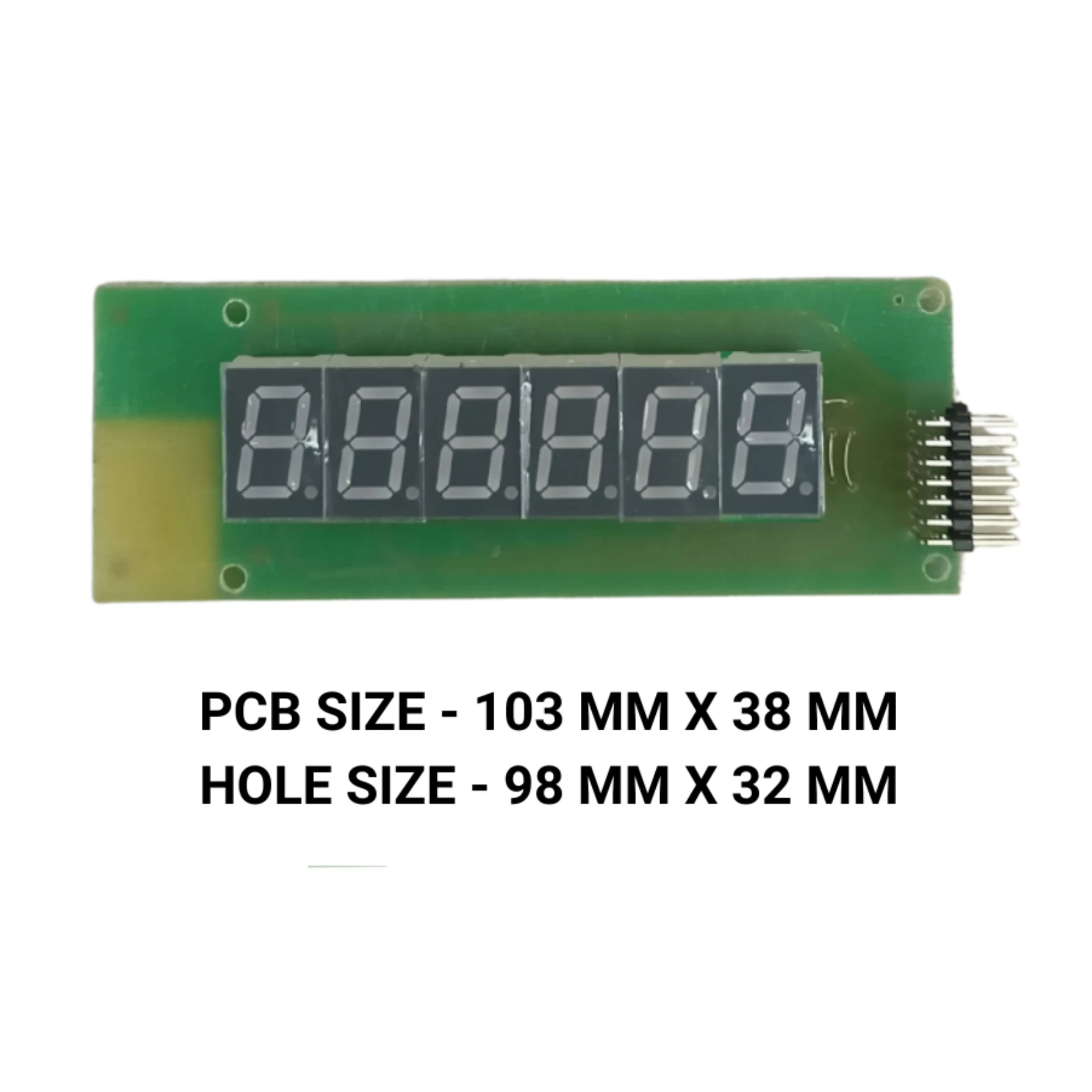

| 3 WIRE DISPLAY | Yes |
| PAIRED CELL | LCT-LAK Loadcell |
Features
Built into every Eagle Weigh card.
- ✓Carat/Tola/GSM caculator
- ✓Live display of Gold/Silver prices can be set up
- ✓Piece counting function and Firm name input
- ✓High counts upto 1,00,000 for high accuracy and stabillity
Used in
Where this card ships.
Jewellery shopsGold testing labsPrecision micro-weighingScientific labs for chemical measurementsSilver weighing
Compare with
More from the Eagle Weigh range.
QUALITY PRODUCT
1 YEAR WARRANTY
TESTED & CALIBRATED
MOISTURE PROOF
Specify · Quote · Ship
Need the EGL J800 for your build?
Tell us the application, the capacity and the volume — we come back with a quote and lead-time within one business day.
ModelEGL J800
CategoryWeighing Scale PCB
OriginMade in India · Samaypur, Delhi
Warranty1 year from invoice
