MODEL NO. :

ED 4 INCH

RED DIGIT

METAL CABINET

WEIGHBRIDGE

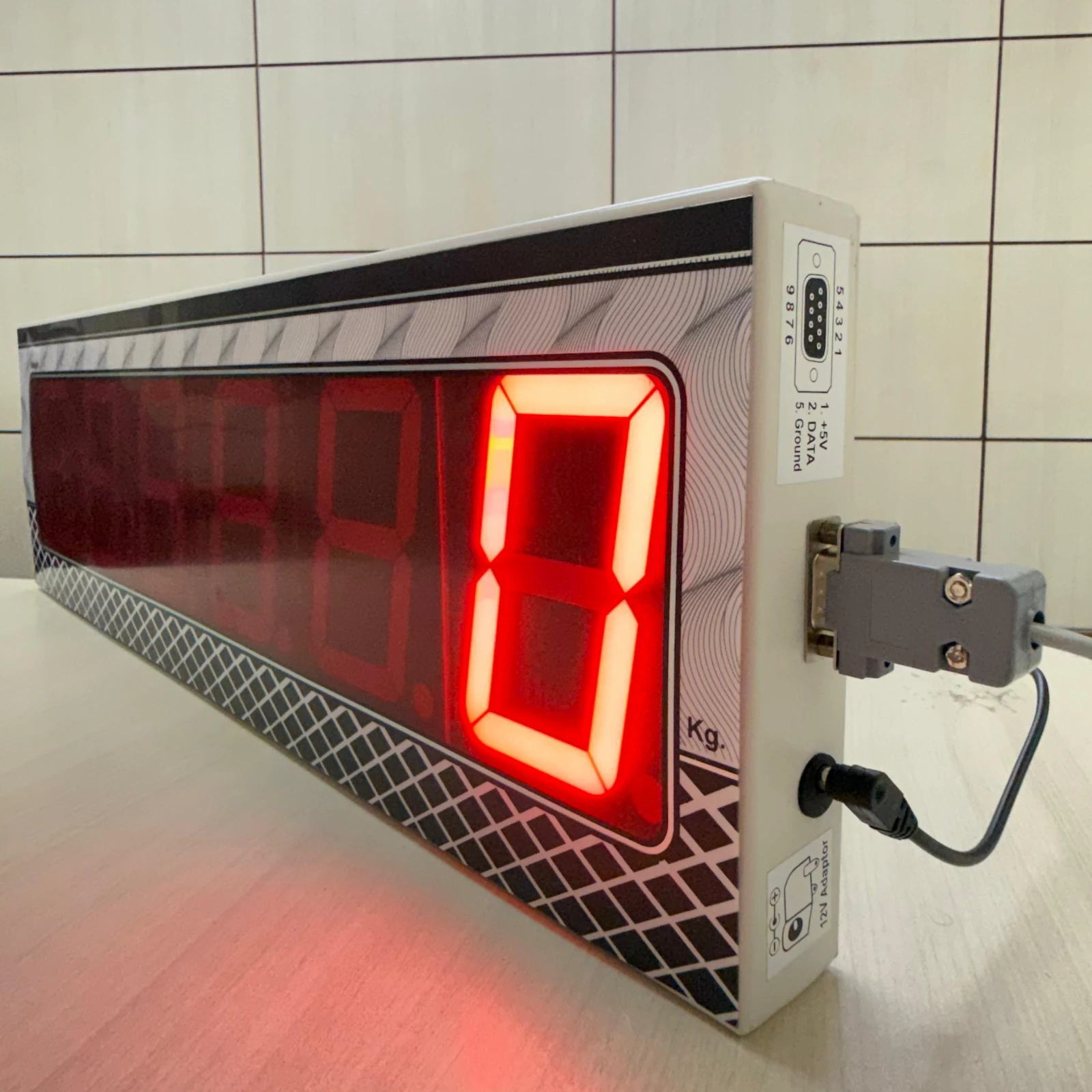

A 4-inch remote display is an external LED screen used on weighbridges to provide truck drivers with clear, real-time weight visibility from a distance. These units connect to the main indicator via serial interfaces (RS-232/RS-485) and often feature robust, weatherproof enclosures suitable for industrial environments.

Specifications

MODEL NO.	ED- 04
CABINET	Metal Powder coated
DISTANCE	UPTO 10 Meters (Option to increase)
POWER SUPPLY	RS232
WIRE	3 WIRE (RX-TX-GND)
SIZE OF SEGMENT	4 INCH

Specifications

STANDARD WIRE LENGTH	Approx 2.5 meters
DIMENSIONS (LXBXH)	...
WEIGHT	1KG
BAUD RATE	1200-2400-4800-9600 ETC.

Features

Built into every Eagle Weigh weighbridge terminal.

✓The remote display is built with super bright high luminous digital segments which are visible from a long distance even in broad day light
✓Connection: Standard RS-232, RS-485, or wireless capabilities.
