MODEL NO. :

S20

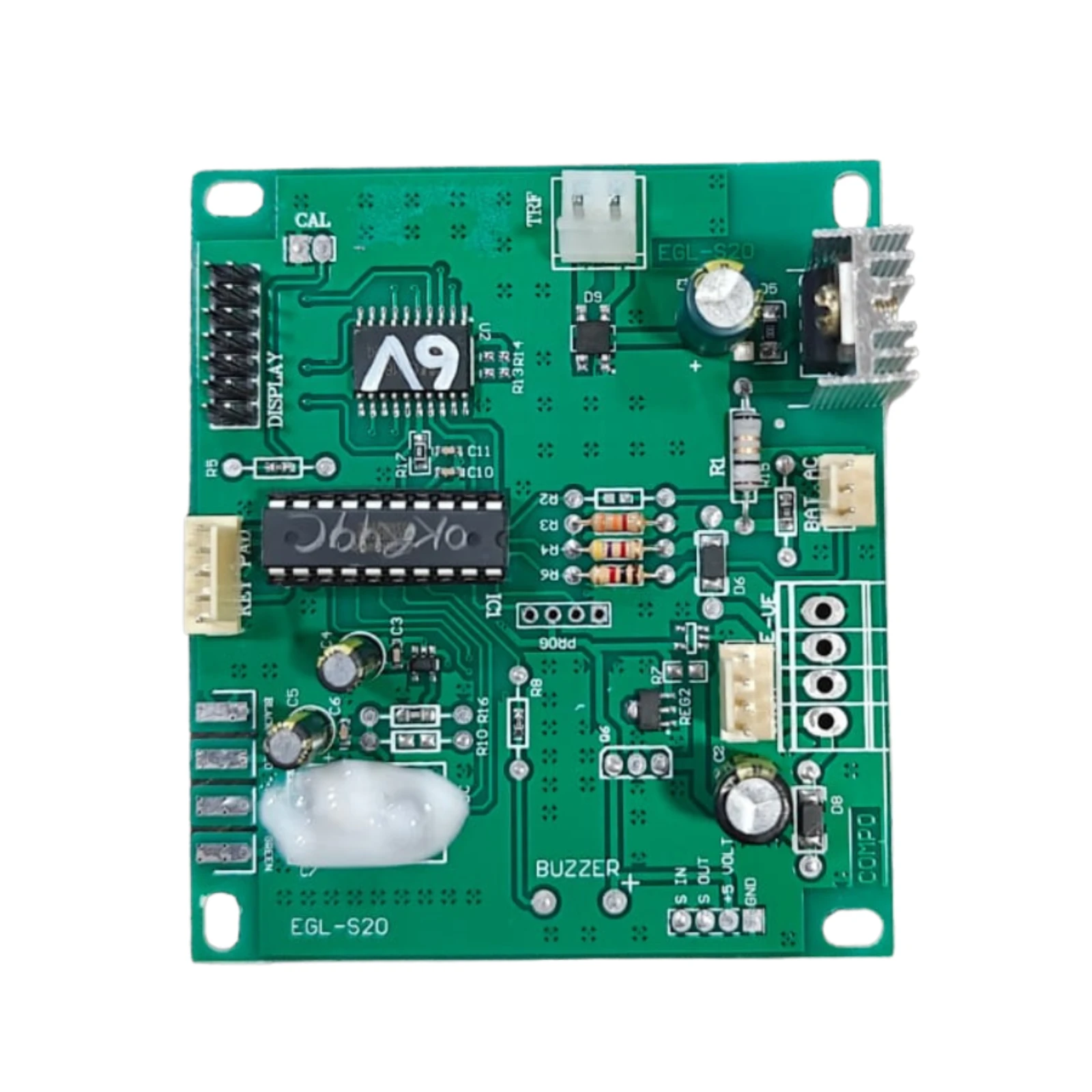

WEIGHING SCALE PCBA

86 X 76 MM

WEIGHING SCALE

Economical motherboard with Through hole technology and megawin micro-controller. Built with durable components, it ensures accurate readings and stable performance. It is suitable for repairing or upgrading digital weighing machines, making it an essential component for technicians and repair professionals.

Specifications

MODEL	S20
ADC	XM24L Taiwan
SOFTWARE	7777 Bobby
PCB SIZE	76 × 86.40 mm
PCB GRADE	1.6 mm thickness . FR4
HOLE MOUNTING SIZE	70 x 80 mm
PROTECTION	Reverse battery
MODE FUNCTION	Hold / piece - counting / kg / litre
DISPLAY COMPATIBLE	0.56" , 0.8" , 1" inches
LED	Dual
RS-232 INTERFACE	NO

Specifications

CAPACITY	3 cap. with 3 step accuracy
DUMMY ZERO	YES
AIR LOCKING	YES
AUTO ZERO	YES
CAL LOCK	YES
BUZZER PORT	YES
SLEEP MODE	YES
BATTERY VOLT IND.	NO
BATTERY BACKUP	Up to 60 hours
BATTERY SUPPORT	6 VOLTS
THREE WIRE DISPLAY	NO

Features

Built into every Eagle Weigh card.

✓High Accuracy: Provides precise weight measurements with minimal errors.
✓Durable Build: Designed with high-quality materials for long-lasting performance.
✓Low Power Consumption: Operates efficiently on a 6V power supply.
✓Easy Installation: Comes with standard connection points for hassle-free setup.
✓Versatile Compatibility: Suitable for various digital weight scales.
✓Stable Performance: Ensures smooth and reliable operation with minimal fluctuations.
